Evaporative Emission Control Canister: Service and Repair

EVAPORATIVE EMISSION (EVAP) CANISTER REPLACEMENT

REMOVAL PROCEDURE

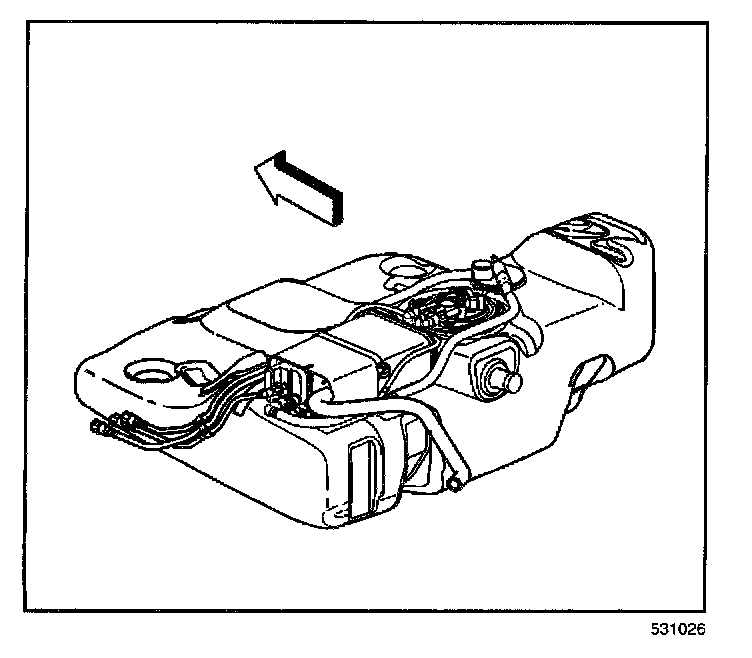

IMPORTANT: It may be necessary to only partially lower the fuel tank to gain access to the EVAP canister.




1. Carefully lower the fuel tank. Refer to Fuel Tank Replacement.
2. Disconnect the EVAP fresh air hose, purge and vapor pipe from the EVAP canister.

IMPORTANT: Replace the retaining strap when replacing the EVAP canister.

3. Release the canister from the retaining strap.
4. Remove the canister from the fuel tank.

INSTALLATION PROCEDURE




1. Position the canister on the fuel tank.
2. Secure the canister to the fuel tank with a new retaining strap.

NOTE: Refer to Nylon Pipes Notice in Service Precautions.

3. Install the EVAP fresh air hose, purge and vapor pipe to the canister.
4. Install the fuel tank.
