89. Engine Lift Rear Bracket Installation

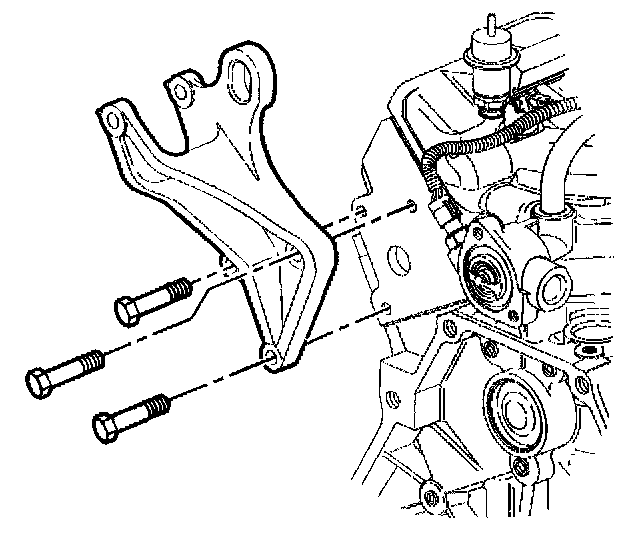

Engine Mount Strut and Engine Lift Bracket Installation





1. Install the engine mount strut and lift bracket.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the engine mount strut and lift bracket bolts.
- Tighten the engine mount strut and lift bracket bolts to 70 Nm (52 ft. lbs.).
