Engine Mount Strut Bracket Replacement - Left

Removal Procedure

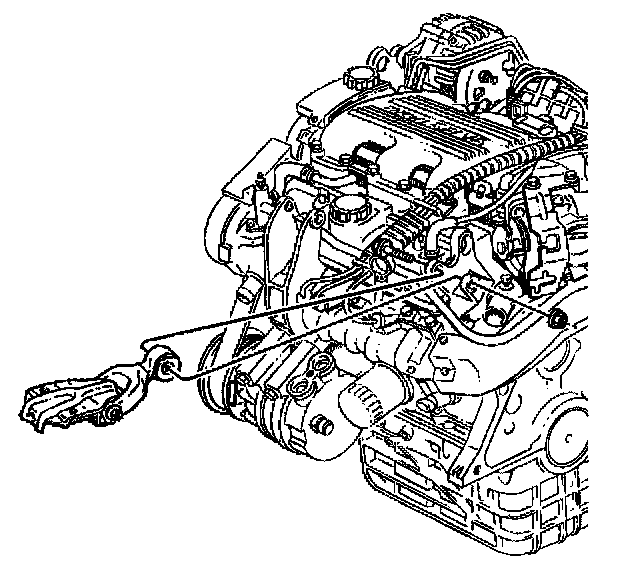

1. Remove the engine mount strut from the left engine mount strut bracket.

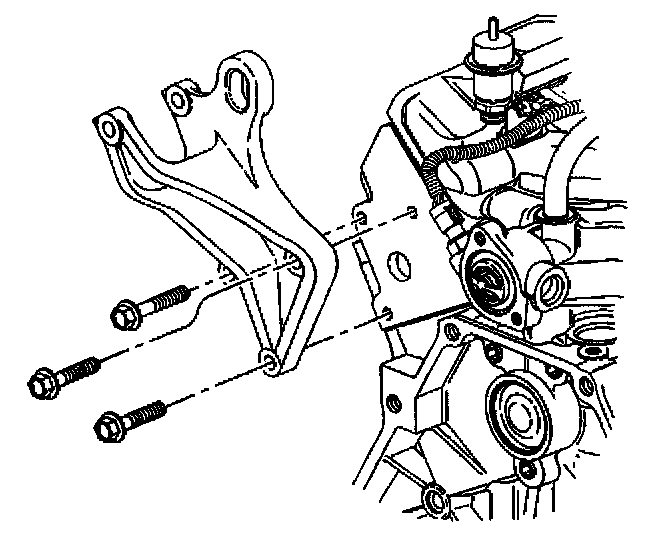

2. Remove the engine mount strut bracket bolts from the left engine mount strut bracket to the cylinder head.
3. Remove the left engine mount strut bracket.

Installation Procedure





1. Install the left engine mount strut bracket.

Notice: Refer to Fastener Notice in Service Precautions.

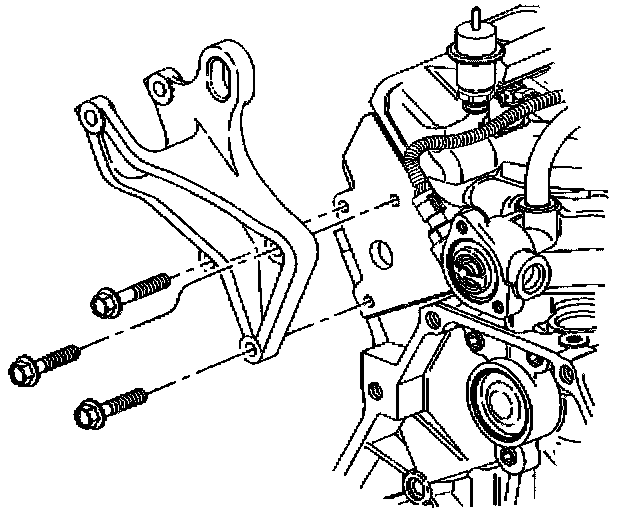

2. Install the engine mount strut bracket bolts through the engine mount strut bracket to the cylinder head.
- Tighten the engine mount strut bracket bolts to 70 Nm (52 ft. lbs.).

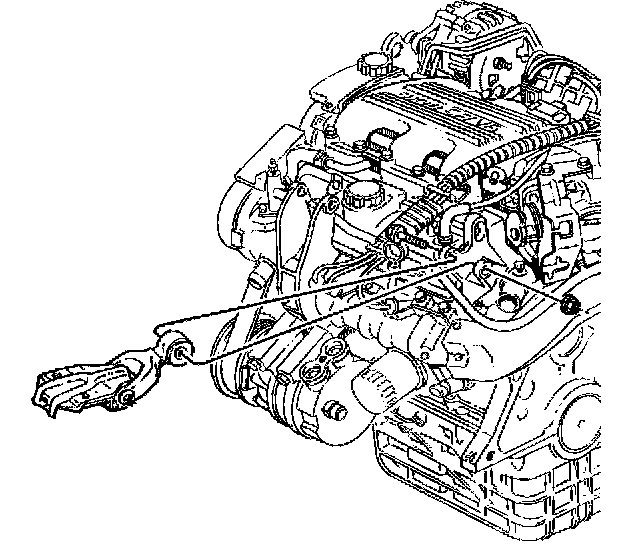

3. Install the engine mount strut to the left engine mount strut bracket.
