Fuel Pressure Release: Service and Repair
FUEL PRESSURE RELIEF PROCEDURETOOLS REQUIRED
^ J 34730-1A Fuel Pressure Gage
^ J 34730-262 Fuel Pressure Gage Fitting
1. Disconnect the negative battery cable.
IMPORTANT: Mount the fuel pressure gage fitting below the belt to avoid contact with the belt.

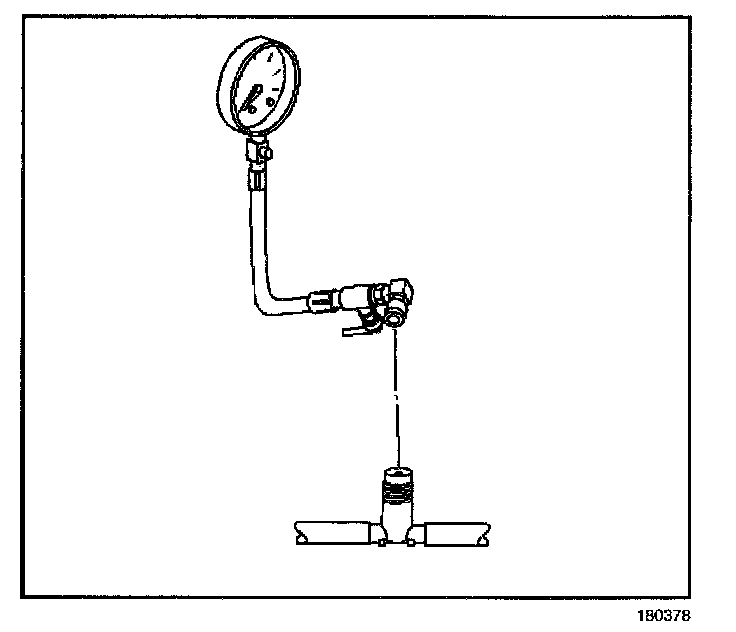

2. Install the J 34730-262 to the fuel pressure connection.
3. Connect J 34730-1A to the fuel pressure gage fitting. Wrap a shop towel around the fuel pressure connection while connecting the fuel pressure gage in order to avoid spillage.
4. Install the bleed hose into an approved container and open the valve to bleed the system pressure. The fuel connections are now sate for servicing.
5. Drain any fuel remaining in the fuel pressure gauge into an approved container.
