Heater Hoses Replacement
TOOLS REQUIREDJ 38185 Hose Clamp Pliers
REMOVAL PROCEDURE
1. Drain the cooling system.

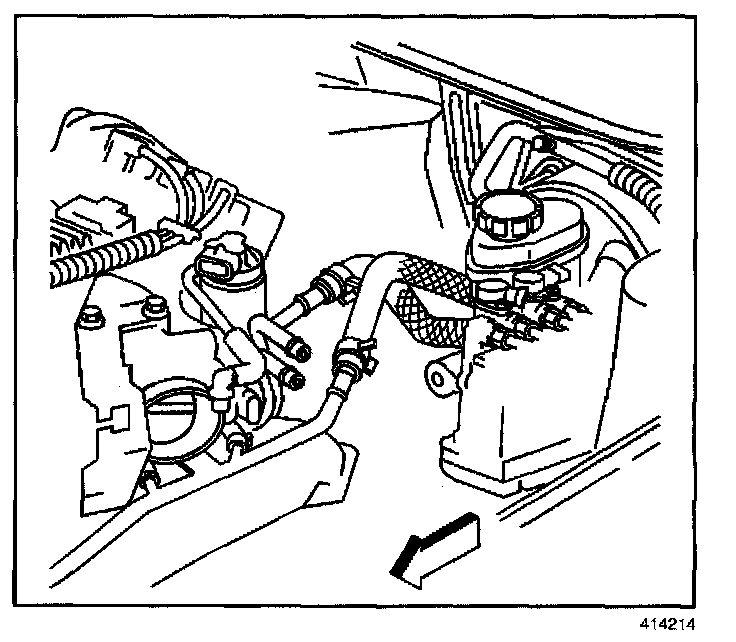

2. Use J 38185 in order to reposition the heater hose inlet and/or outlet clamp.
3. Disconnect the heater inlet hose and/or the outlet hose from the inlet and/or outlet pipe.
4. Use J 38185 in order to reposition the heater core inlet and/or outlet hose clamp.
5. Disconnect the heater inlet hose and/or the outlet hose from the heater core.
6. Remove the heater inlet hose and/or the outlet hose.
INSTALLATION PROCEDURE
1. Install the heater inlet hose and/or outlet hose.
2. Connect the heater inlet hose and/or the outlet hose to the heater core.

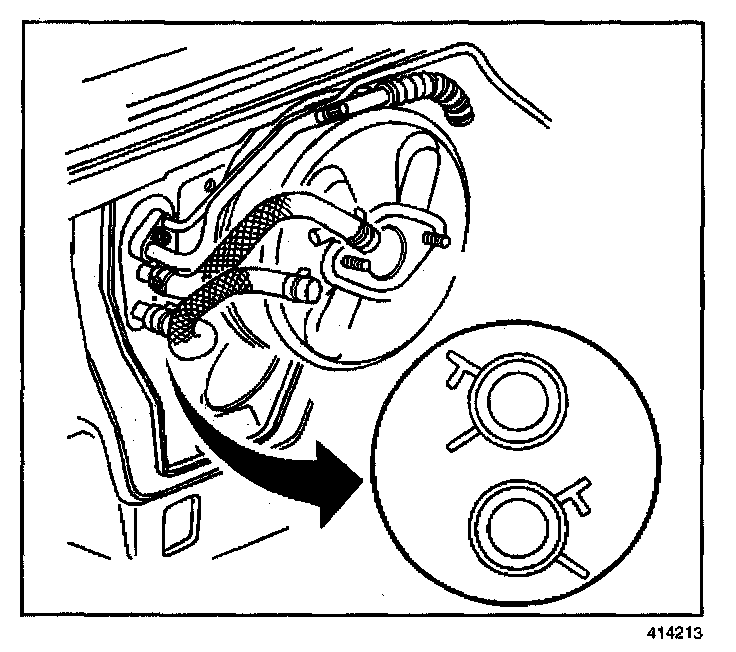

IMPORTANT: Reposition heater core hose clamps in the indicated location.
3. Use J 38185 in order to reposition the heater core hose inlet and/or outlet clamp.
4. Connect the heater inlet hose and/or the outlet hose to the inlet and/or outlet pipe.
5. Use J 38185 in order to reposition the heater hose inlet and/or outlet clamp.
6. Refill the cooling system. Refer to Draining and Filling Cooling System in Cooling System.
