Home
>>
Buick
>>
2001
>>
Century V6-3.1L VIN J
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
C100 - C199
>>
C105
C105

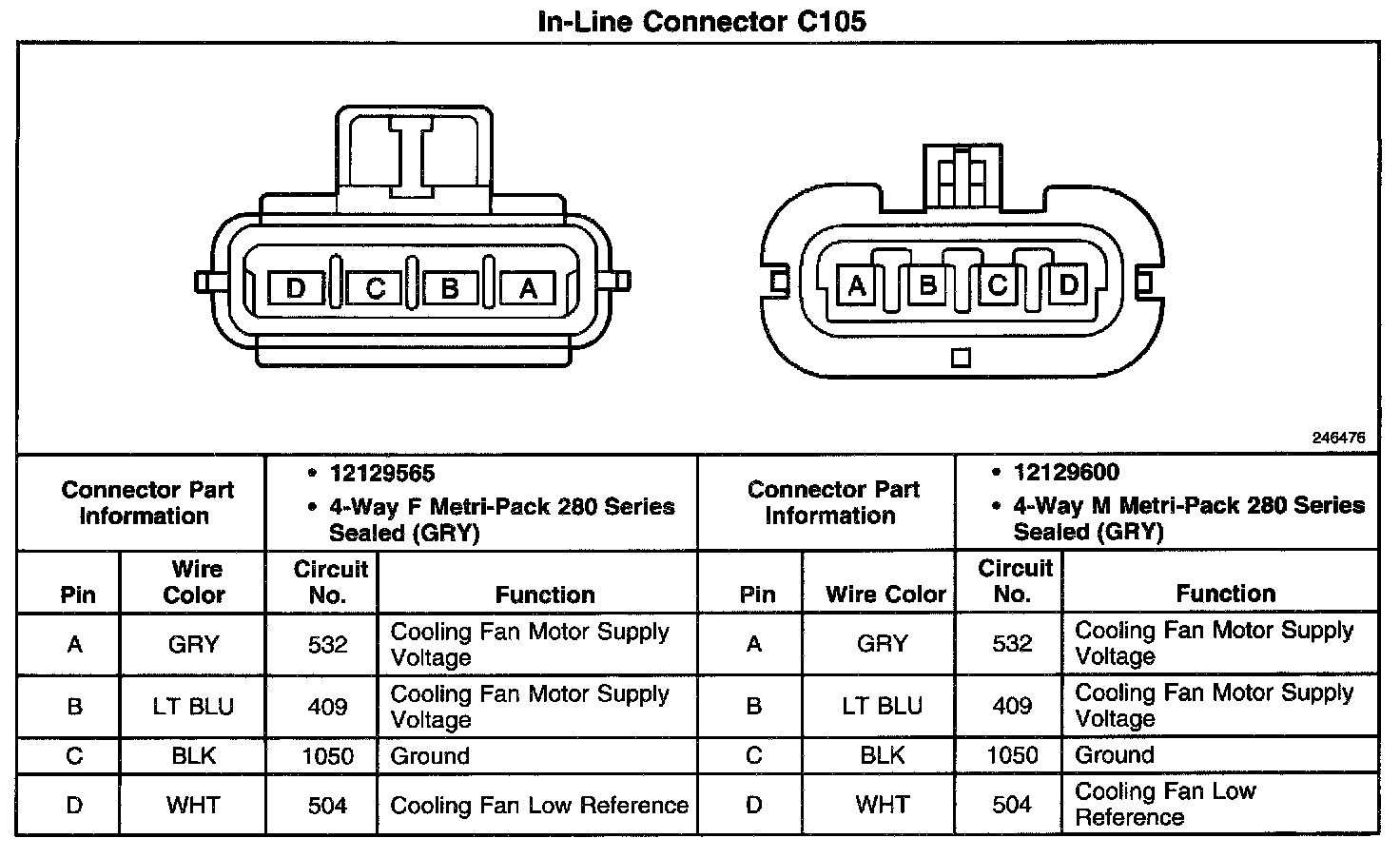

In-Line Connector C105:
