Home
>>
Buick
>>
2000
>>
Regal V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
Starting System

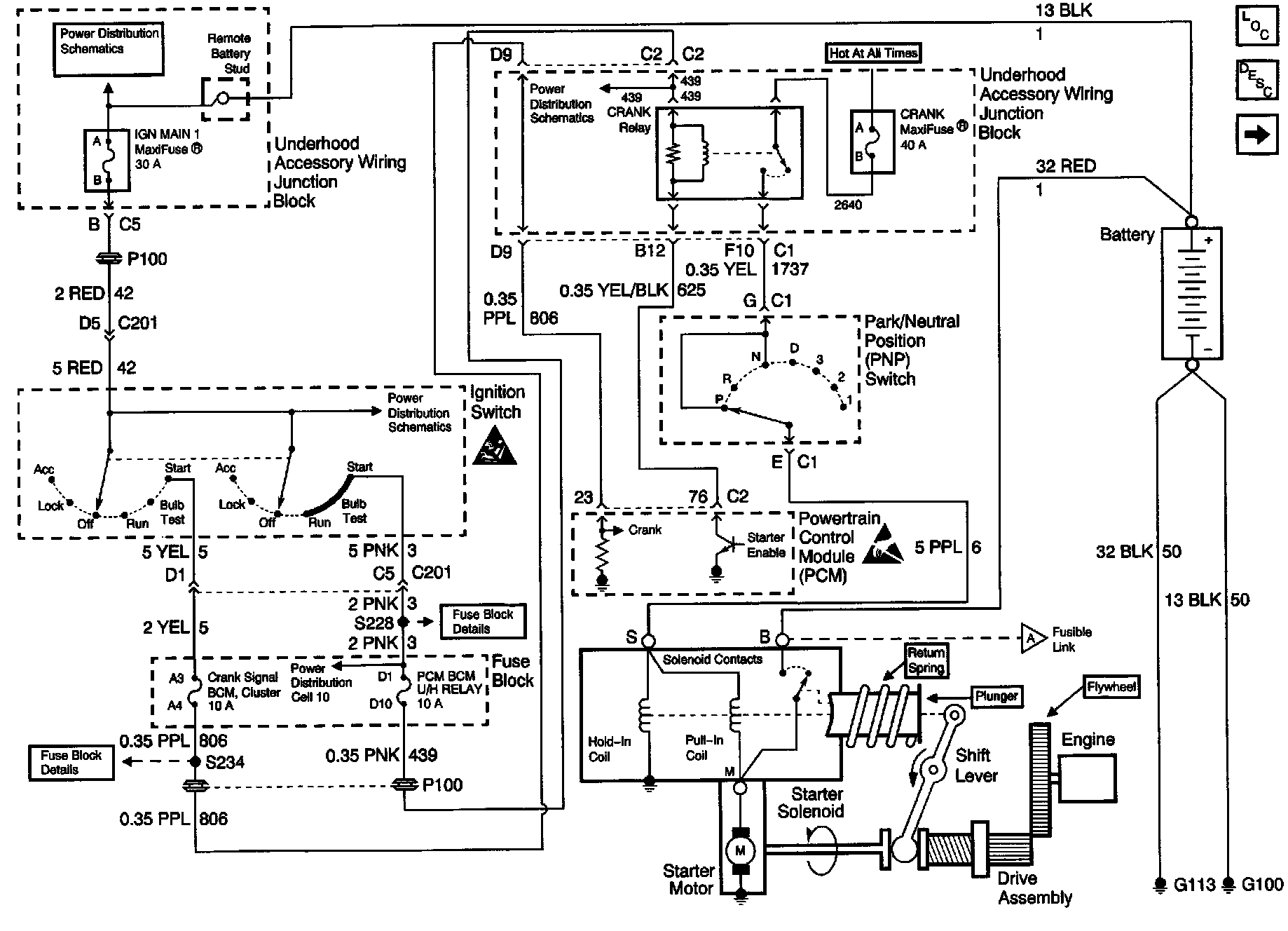

Starting And Charging Schematics : Power/Ground Distribution, Starting:
