Buick
>>
2000
>>
Regal V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Engine Controls
>>
Generator and Class 2 Serial Data
Generator and Class 2 Serial Data

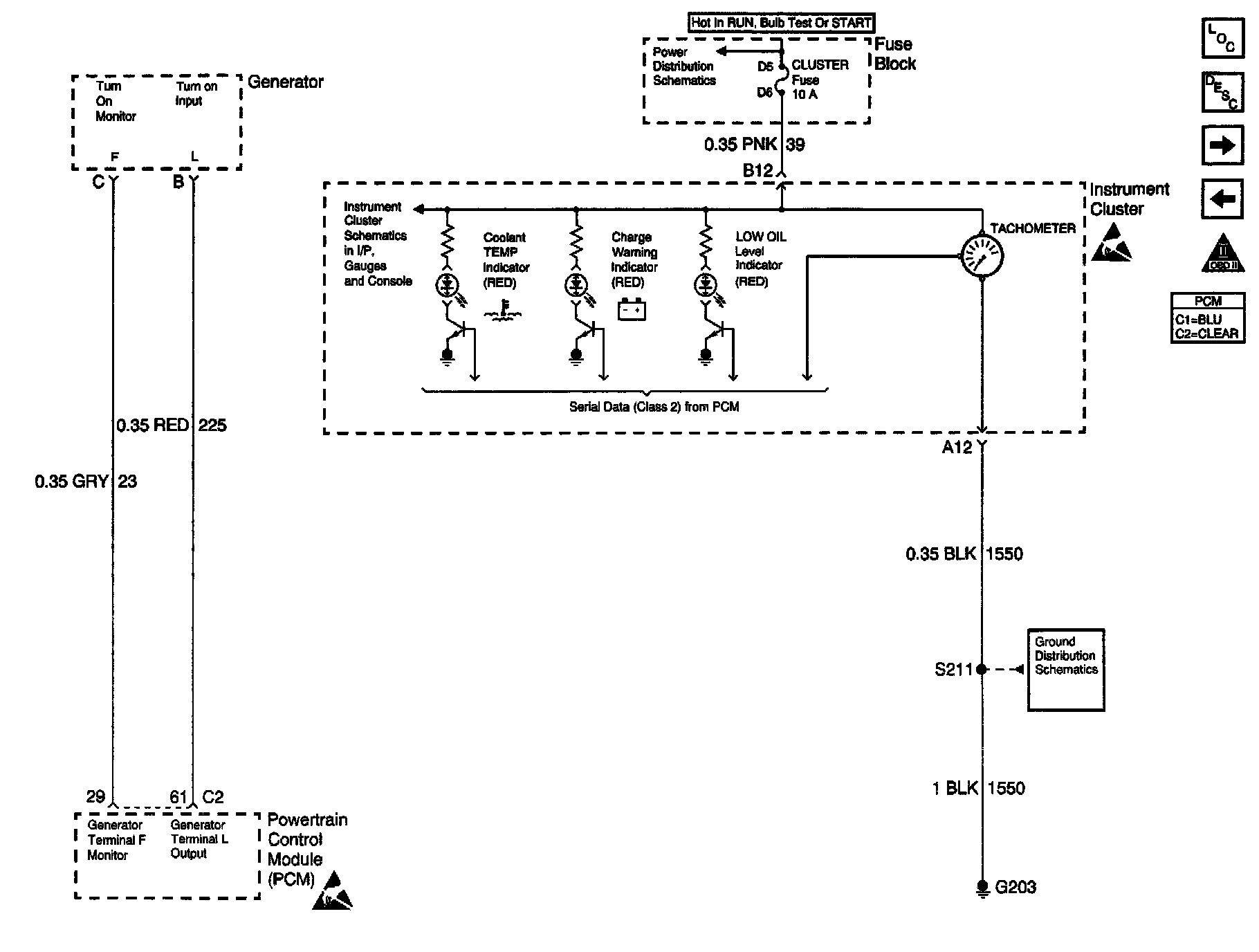

Engine Controls Schematics: Generator and Class 2 Serial Data:
