Home
>>
Buick
>>
2000
>>
Regal V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Manifold Pressure/Vacuum Sensor
>>
Diagrams
>>
Connector Views
Connector Views

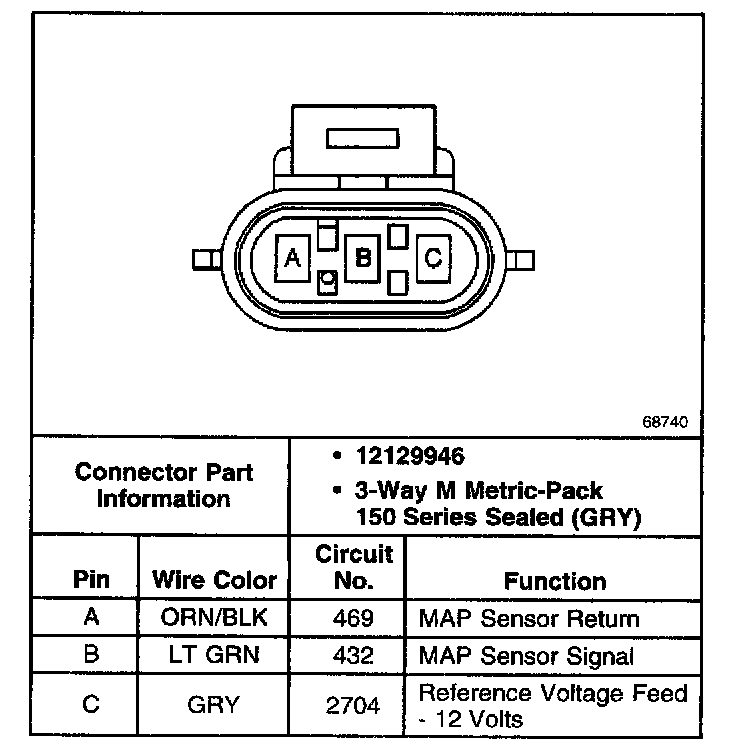

Manifold Absolute Pressure (MAP) Sensor (w/RPO L67):
