Home
>>
Buick
>>
2000
>>
Regal V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>
Body Control Module
>>
Interior Lights
Interior Lights

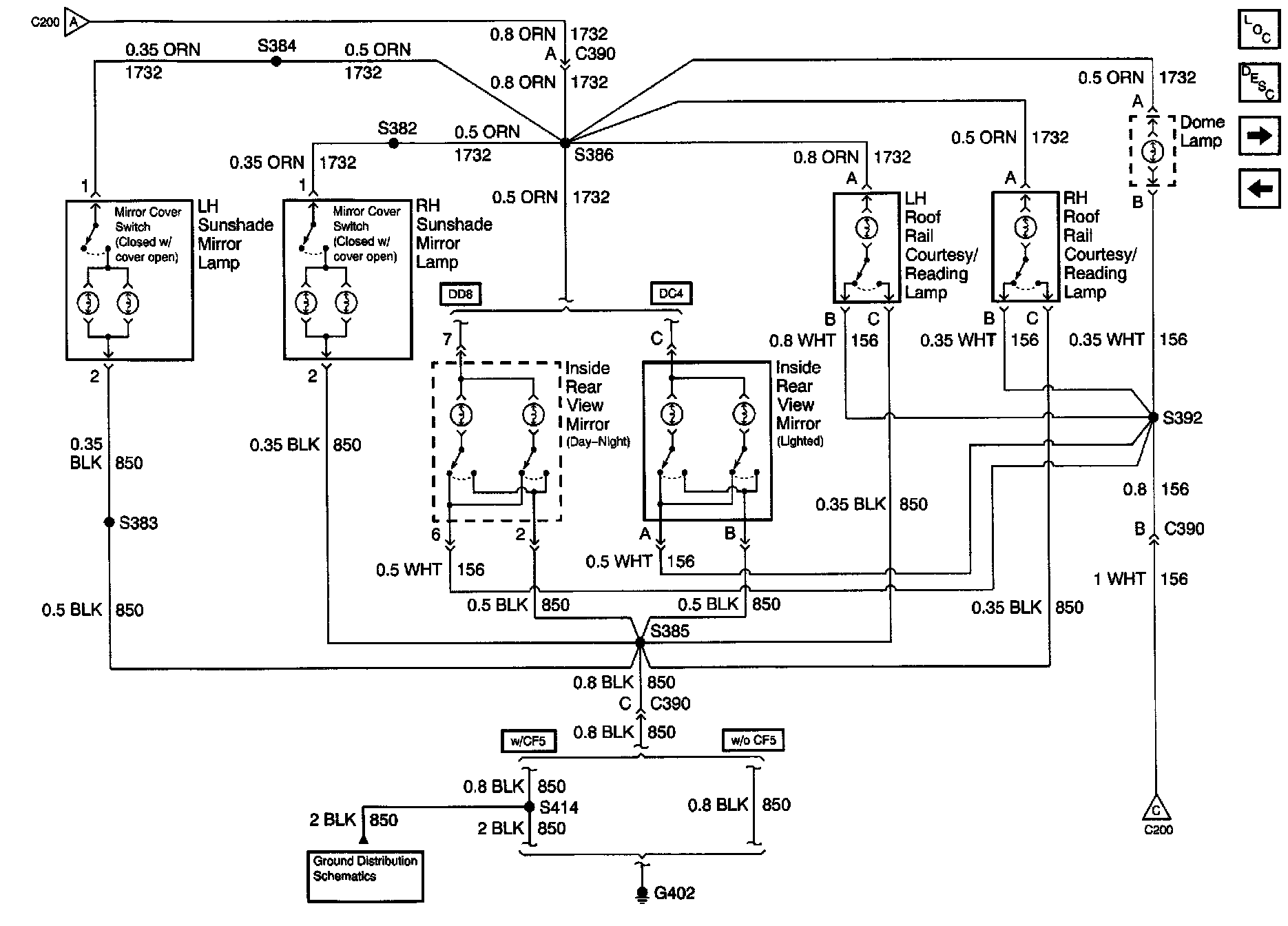

Body Control Module Schematics : Interior Lights:
