Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Buick
>>
2000
>>
LeSabre V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Locks
>>
Door Control Module Schematics
>>
Right Rear Door Module (RRDM)
Right Rear Door Module (RRDM)

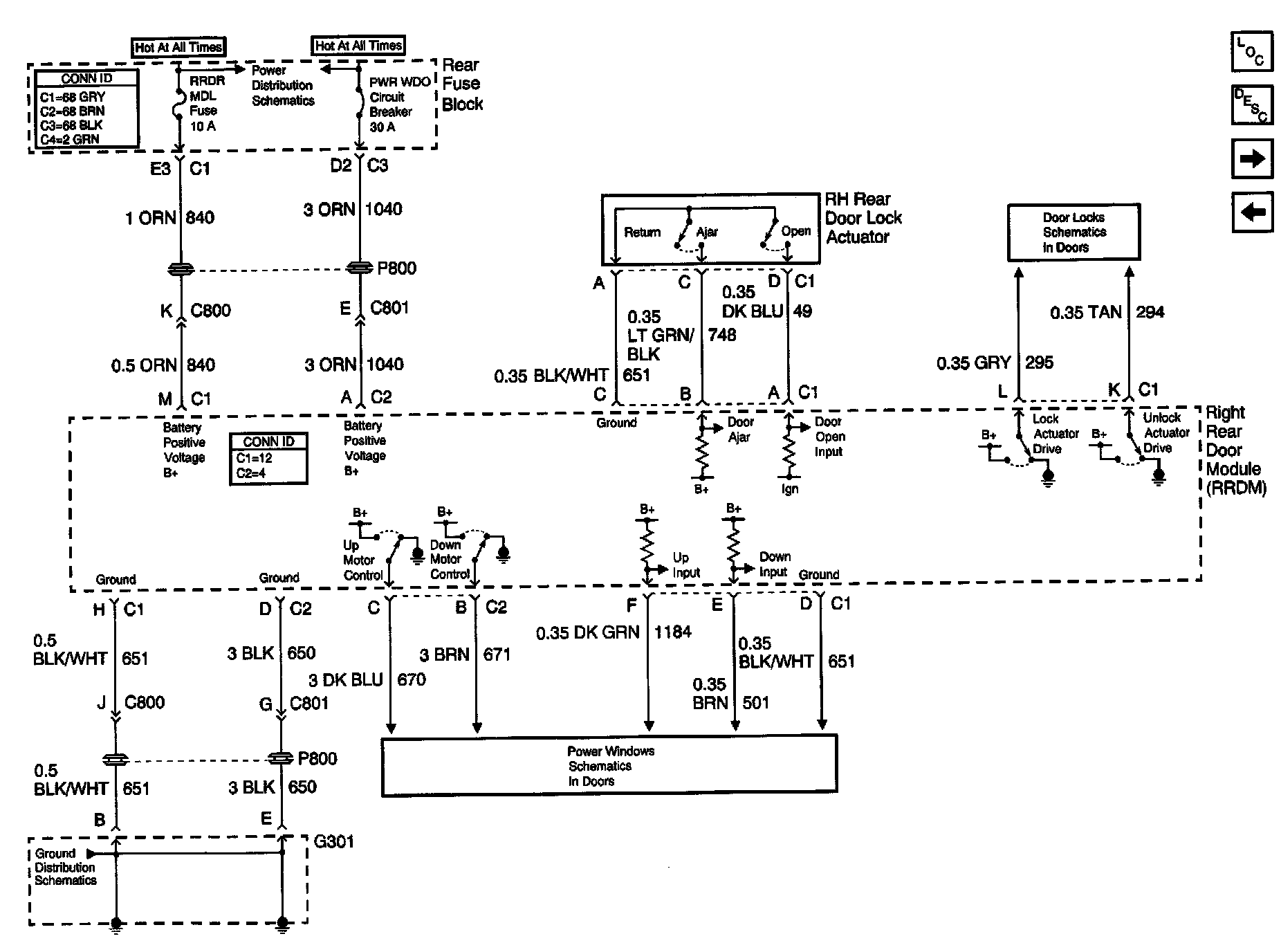

Door Control Module Schematics: Right Rear Door Module (RRDM):
