Passenger Door Module (PDM) Power and Ground
Passenger Door Module (PDM) Power and Ground

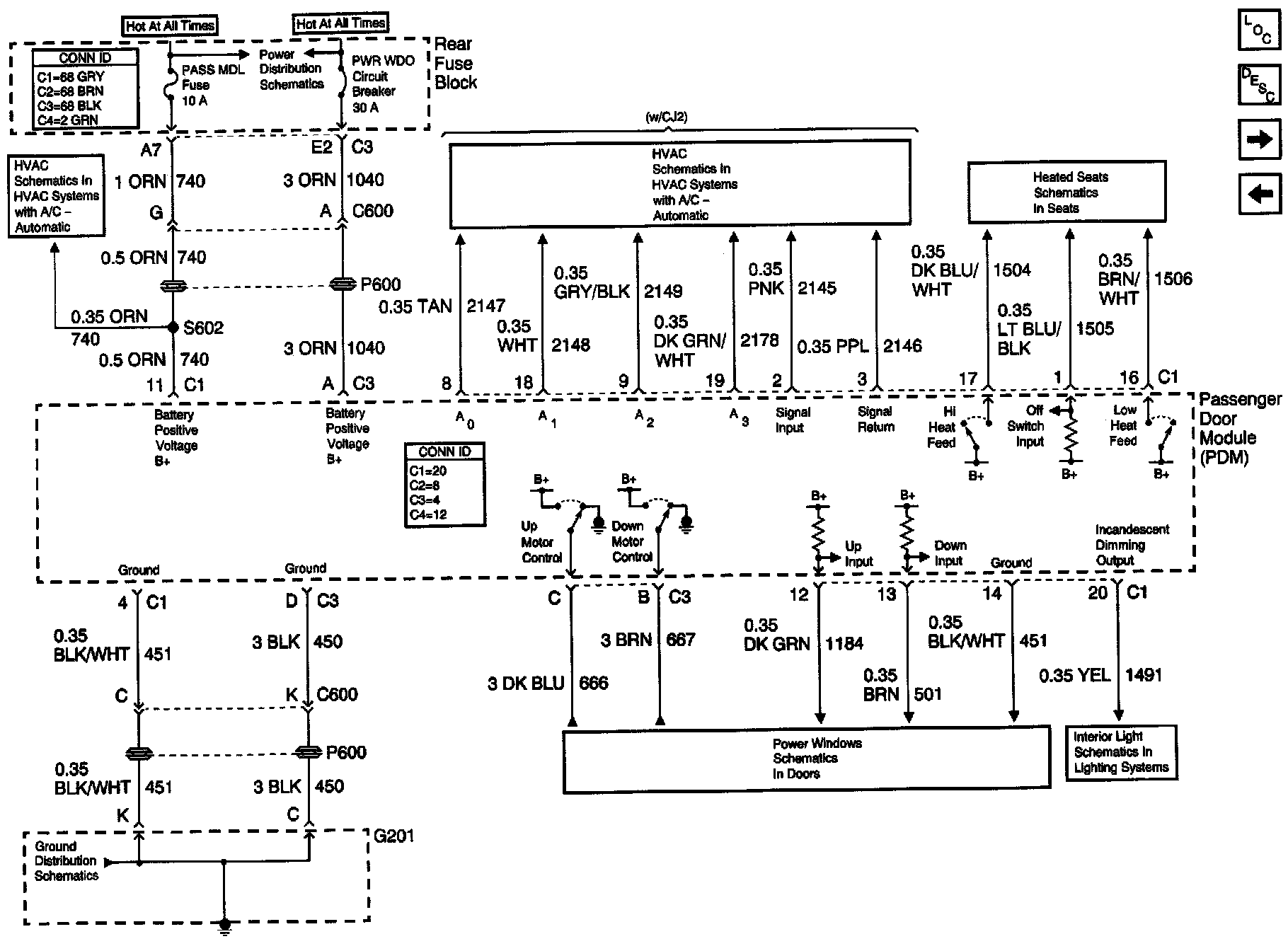

Door Control Module Schematics: Passenger Door Module (PDM) Power And Ground:
