Power Locks
>>
Door Control Module Schematics
>>
Passenger Door Module (PDM) Inputs/Outputs
Passenger Door Module (PDM) Inputs/Outputs

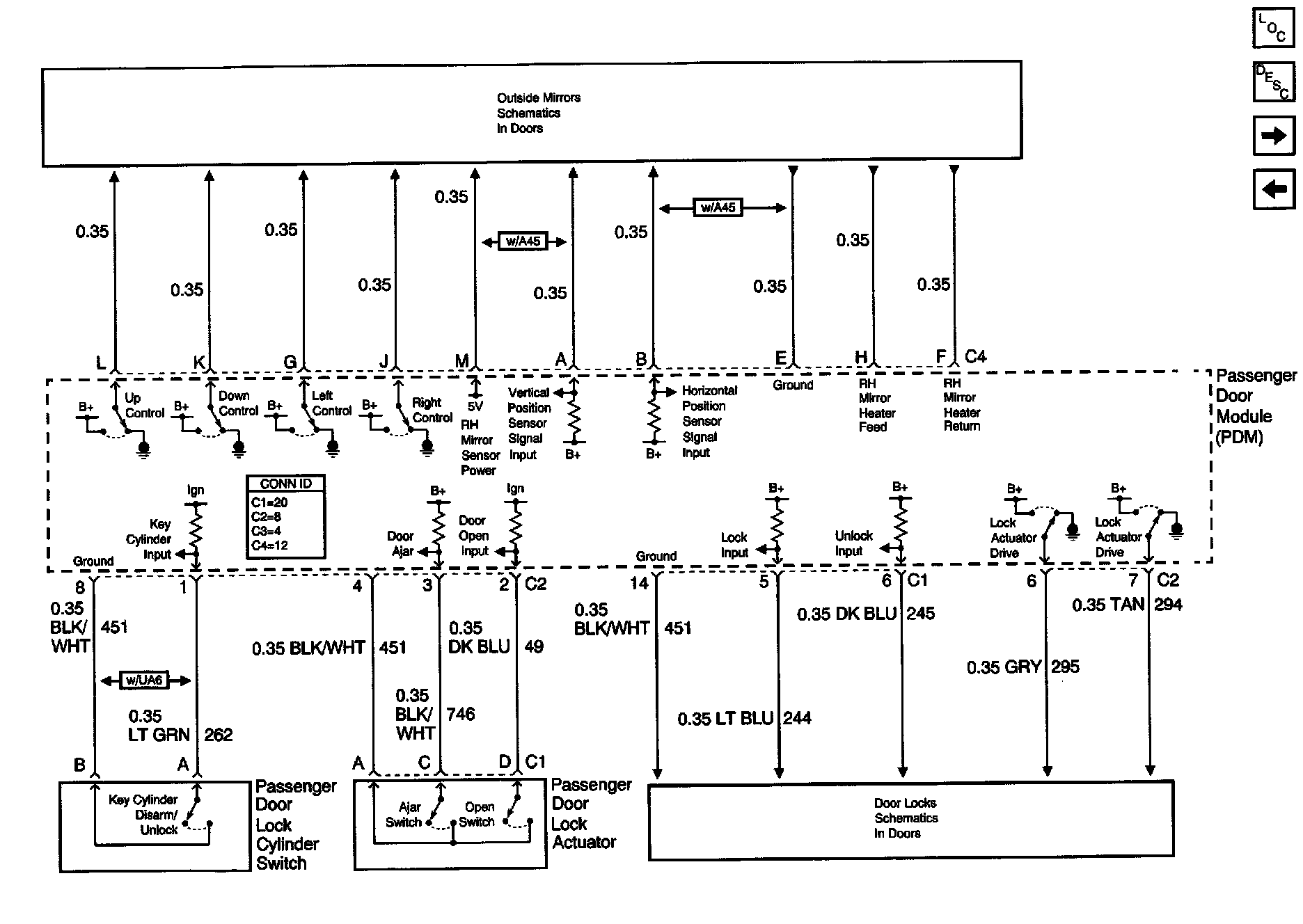

Door Control Module Schematics: Passenger Door Module (PDM) Inputs/Outputs:
