Driver Door Module (DDM) Inputs/Outputs
Driver Door Module (DDM) Inputs/Outputs

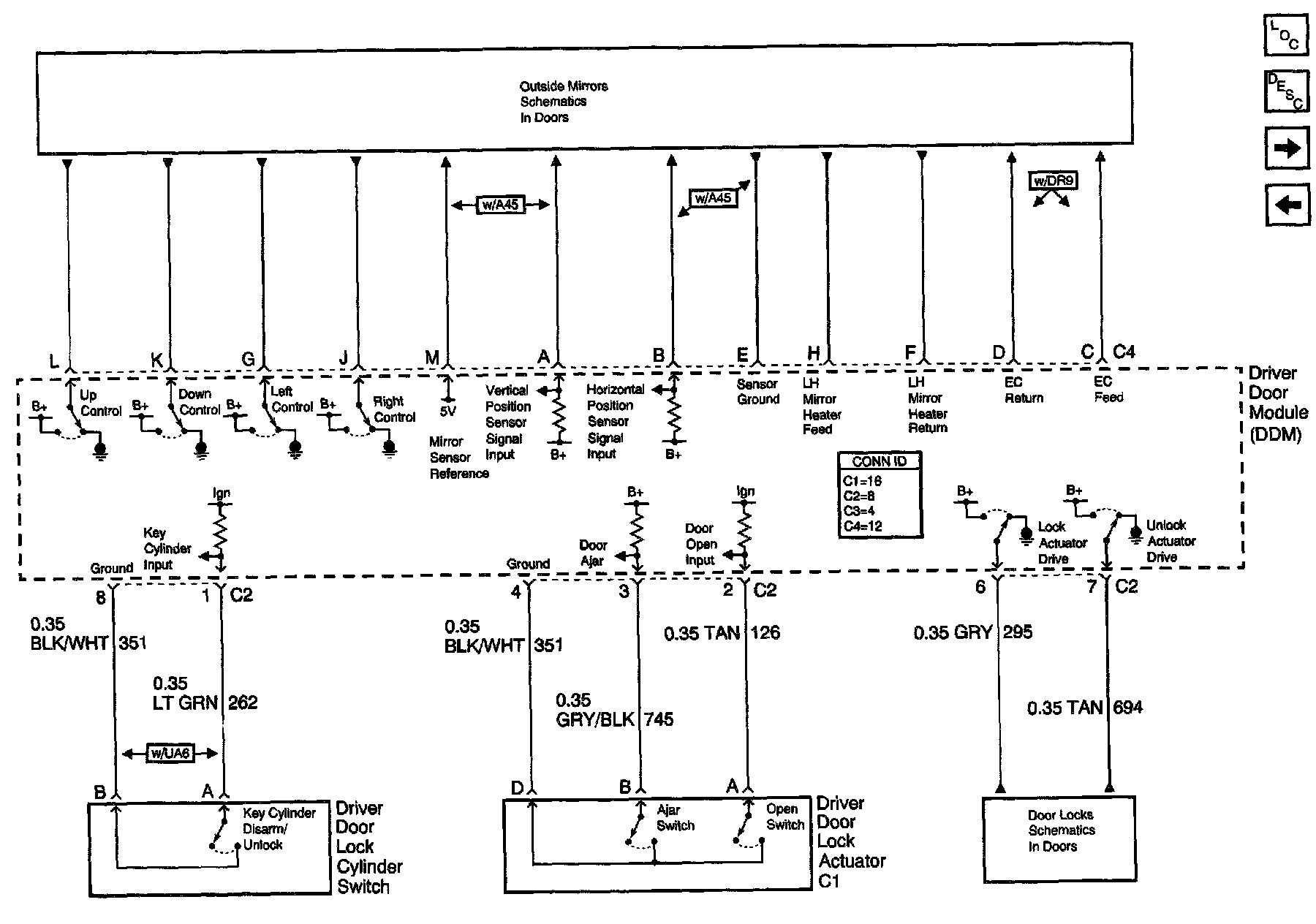

Door Control Module Schematics: Driver Door Module (DDM) Inputs/Outputs:
