Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Buick
>>
2000
>>
Century V6-3.1L VIN J
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Engine Controls
>>
Cooling Fan Controls
Cooling Fan Controls

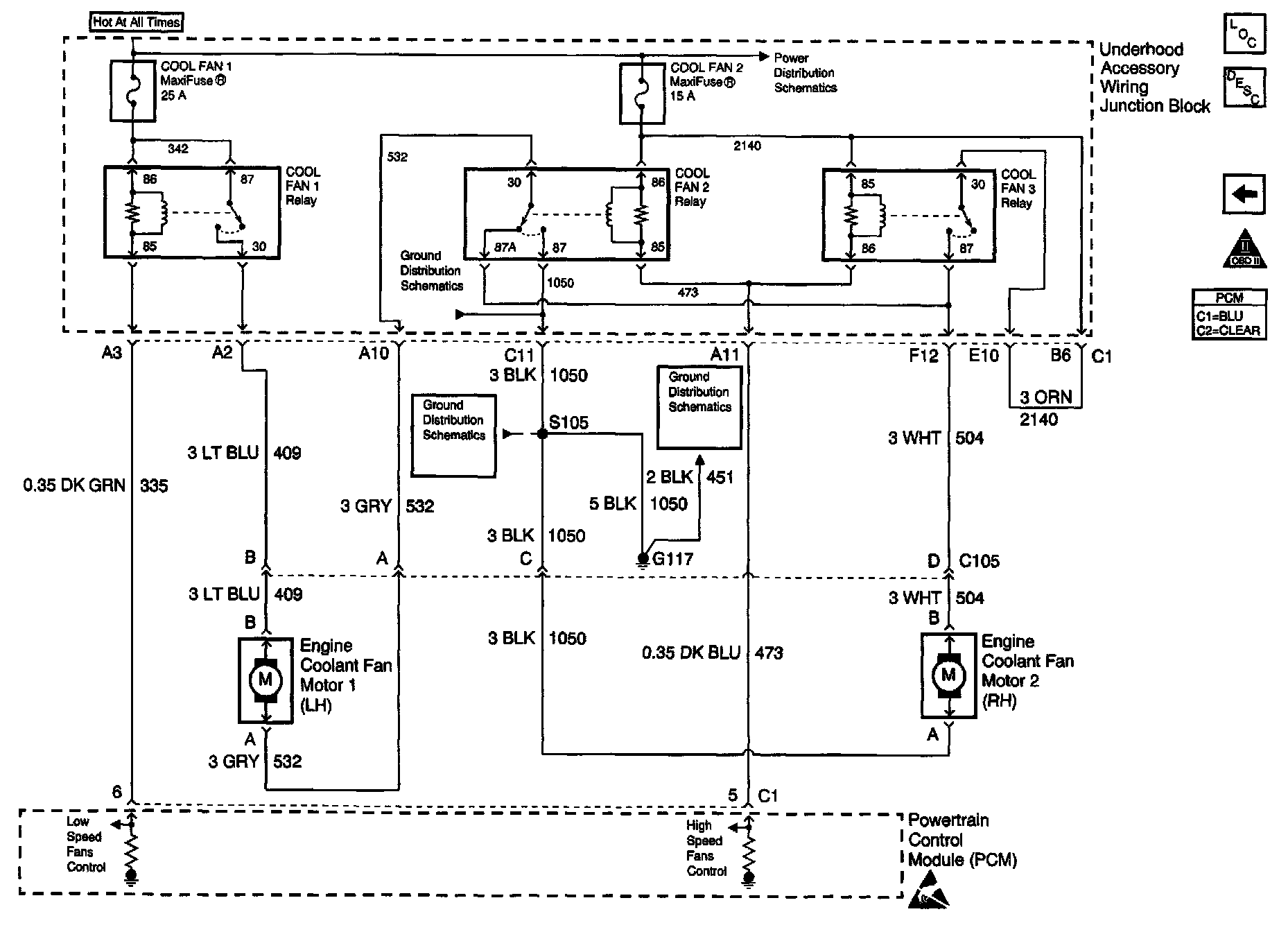

Engine Controls Schematic: Cooling Fan Output:
