Transmission Cooler: Service and Repair

Removal Procedure





1. Remove the case side cover. Refer to Case Side Cover Replacement.

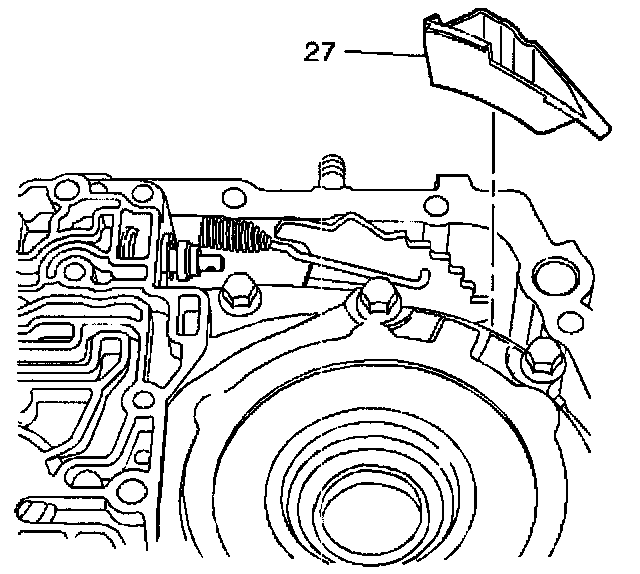

2. Remove the oil reservoir weir (27).

Installation Procedure





1. Install the oil reservoir weir (27).
2. Install the case side cover. Refer to Case Side Cover Replacement.
