Buick
>>
1999
>>
Regal V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Sensors and Switches - A/T
>>
Transmission Temperature Sensor/Switch
>>
Diagrams
>>
Connector Views
Connector Views

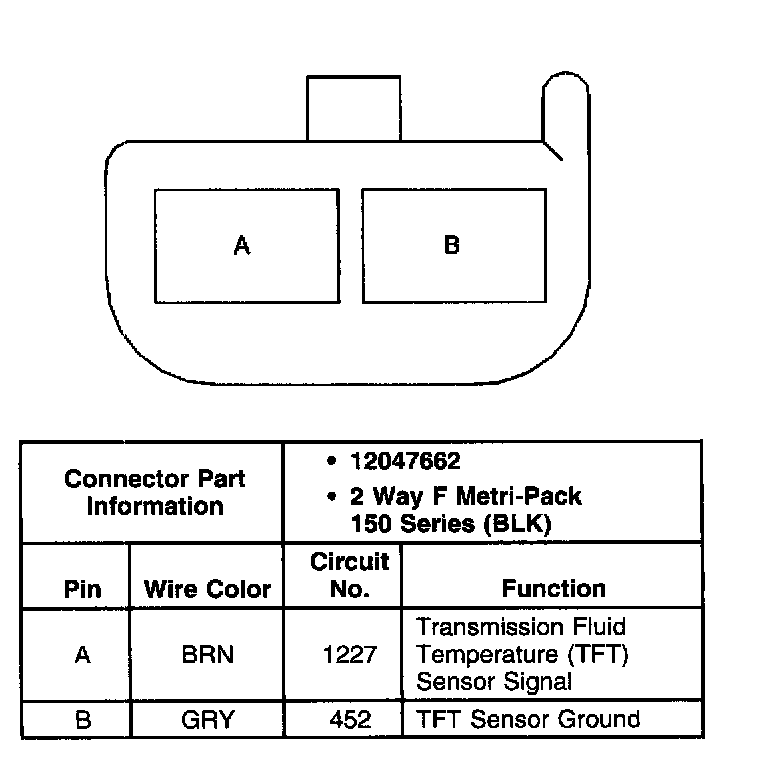

Transmission Fluid Temperature (TFT) Sensor Connector, Wiring Harness Side
