Rear

REMOVAL PROCEDURE





1. Raise and support the vehicle.

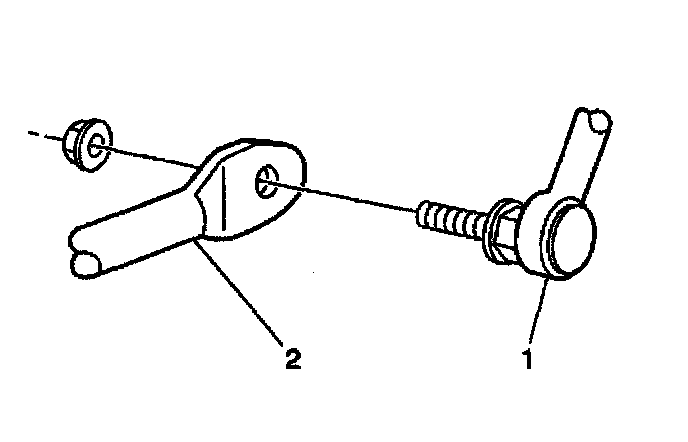

2. Disconnect the rear stabilizer shaft link from the strut.
3. Remove the rear stabilizer shaft link nut.
4. Remove the stabilizer shaft link (2) from the stabilizer shaft (3).

INSTALLATION PROCEDURE





1. Install the stabilizer shaft link (2) to the stabilizer shaft (3).
^ Tighten the stabilizer shaft link nut to 35 Nm (26 ft. lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.

2. Connect the stabilizer shaft link to the strut.
^ Tighten the stabilizer shaft link to strut bolt/screw to 35 Nm (26 ft. lbs.).

3. Lower the vehicle.
