Front

REMOVAL PROCEDURE

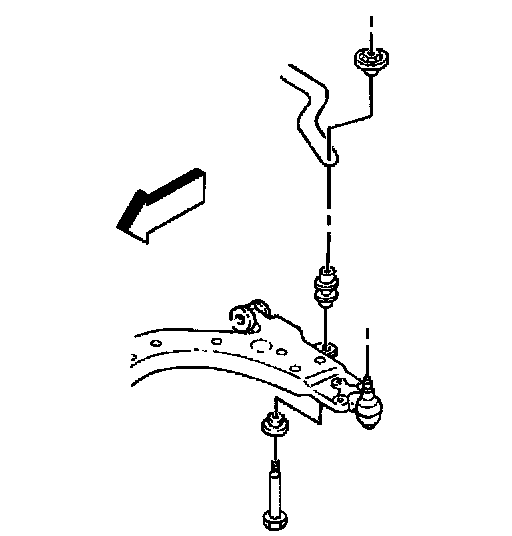

1. Raise the vehicle and suitably support the vehicle.
2. Remove the tire and wheel assembly.
3. Remove the stabilizer shaft link bolts and nuts.
4. Remove the stabilizer shaft link from the vehicle.

INSTALLATION PROCEDURE





1. Install the stabilizer link in the vehicle.
2. Install the stabilizer shaft link bolt and nut.
^ Tighten the stabilizer shaft link nut to 23 Nm (17 ft. lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.

3. Install the tire and wheel assembly.
4. Lower the vehicle.
