Rear

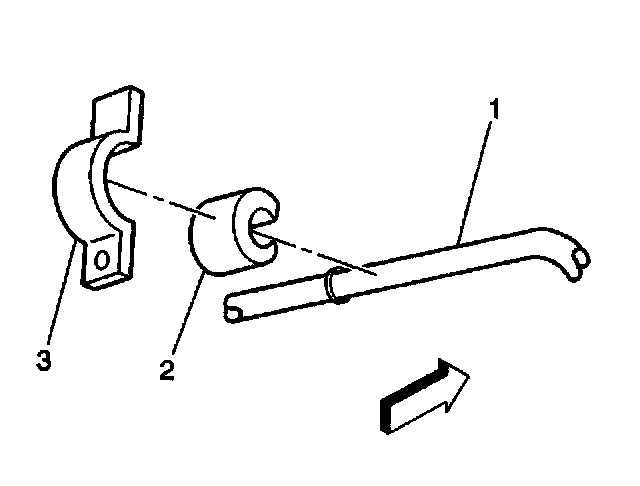

REMOVAL PROCEDURE





1. Raise and support the vehicle.
2. Remove the stabilizer shaft insulator bracket bolt from the rear suspension support.
3. Separate the insulator bracket (3) from the insulator (2).
4. Remove the insulator from the stabilizer shaft (1).

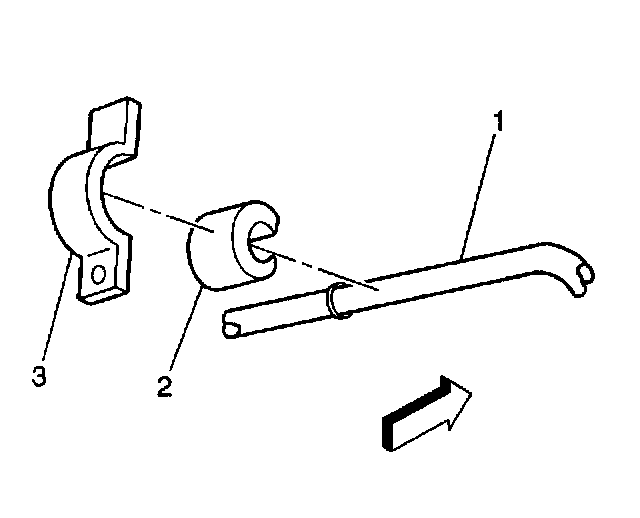

INSTALLATION PROCEDURE





1. Install the insulator (2) to the stabilizer shaft (1).
2. Install the stabilizer shaft insulator bracket (3).
3. Install the stabilizer shaft insulator bracket bolt to the rear suspension support.
- Tighten the bracket bolt to 48 Nm (35 ft. lbs.).


4. Lower the vehicle.
