Power Steering Pump Replacement

REMOVAL PROCEDURE





1. Remove the accessory drive belt.
2. Raise and support the vehicle.
3. Remove the tire and wheel assembly.
4. Place a drain pan under the vehicle.
5. Remove the power steering pressure line from the power steering pump.
6. Remove the power steering return hose from the power steering pump.

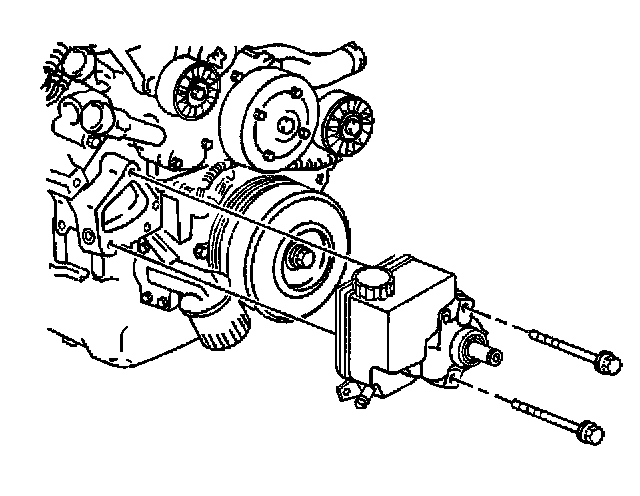

7. Remove the power steering pump mounting bolts.
8. Remove the power steering pump assembly.
9. Remove the power steering pulley from the power steering pump.
10. Remove the power steering pump reservoir from the power steering pump assembly.


INSTALLATION PROCEDURE





1. Install the power steering pump reservoir to the power steering pump.
2. Install the power steering pulley to the power steering pump.
3. Install the power steering pump.

NOTICE: Refer to Fastener Notice in Service Precautions.

4. Install the power steering pump mounting bolts.
- Tighten the power steering pump mounting bolts to 34 Nm (25 ft. lbs.).





5. Install the power steering pressure line to the power steering pump.
6. Install the power steering return hose to the power steering pump.
7. Install the tire and wheel assembly.
8. Lower the vehicle.
9. Install accessory drive belt.
10. Fill the power steering system.
11. Bleed the power steering system.
12. Inspect the power steering system for leaks.
13. Remove the drain pan from under the vehicle.
