Automatic Door Locks Outputs
Automatic Door Locks Outputs

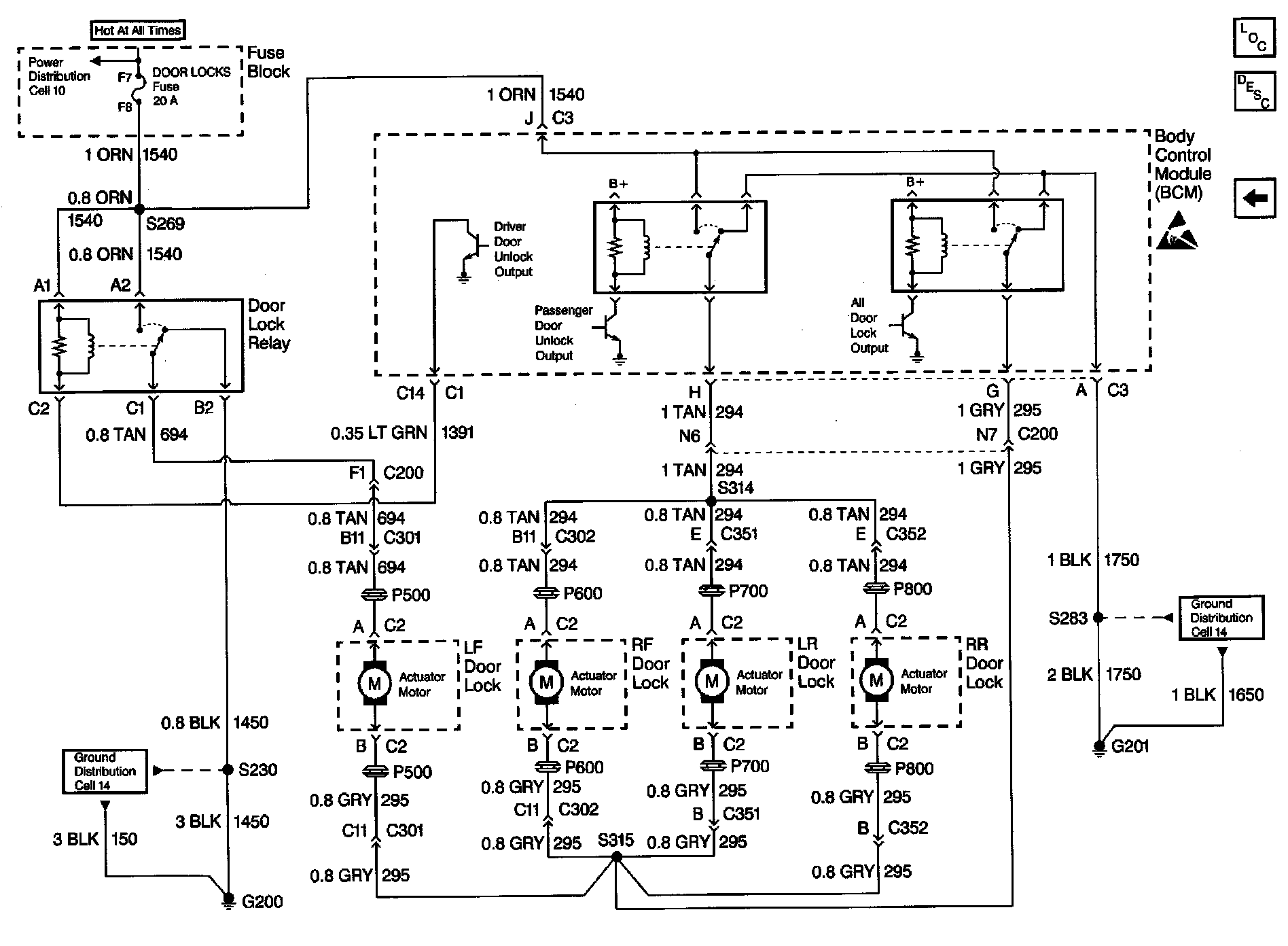

Body Control Module Schematics: Automatic Door Locks Outputs:
