HVAC System - Manual

REMOVAL PROCEDURE.




1. Remove the left and right instrument panel insulators.

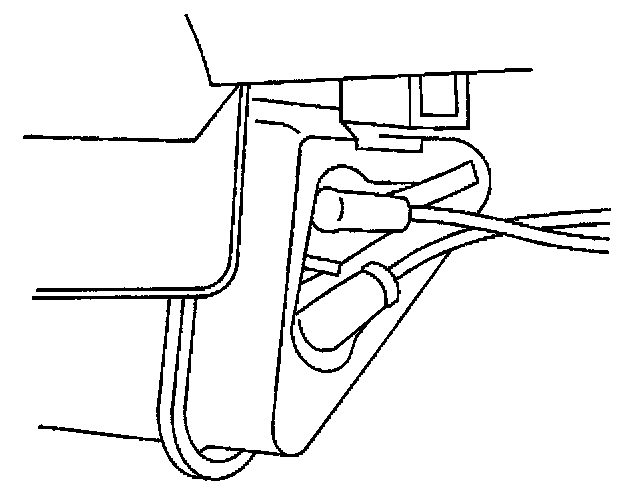

2. Disconnect the vacuum hoses from the vacuum tank.

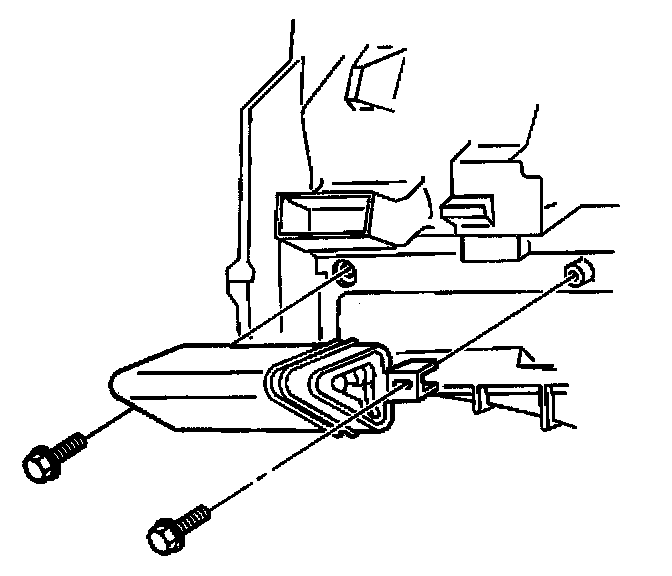

3. Remove the screws that secure the vacuum tank to the HVAC module.
4. Remove the vacuum tank.

INSTALLATION PROCEDURE




1. Install the tank into the vehicle.

NOTICE: Refer to Fastener Notice in Service Precautions.

2. Install the mounting screws securing the vacuum tank.

Tighten
Tighten the vacuum tank screws to 1.5 N.m (13 lb in).




3. Connect the vacuum hoses to the vacuum tank.
4. Install the left and right instrument panel insulators.
