Air Distribution Ducts Replacement - Auxiliary

REMOVAL PROCEDURE
1. Position aside the front half of the carpet. Refer to Carpet Replacement - Front in Interior Trim.

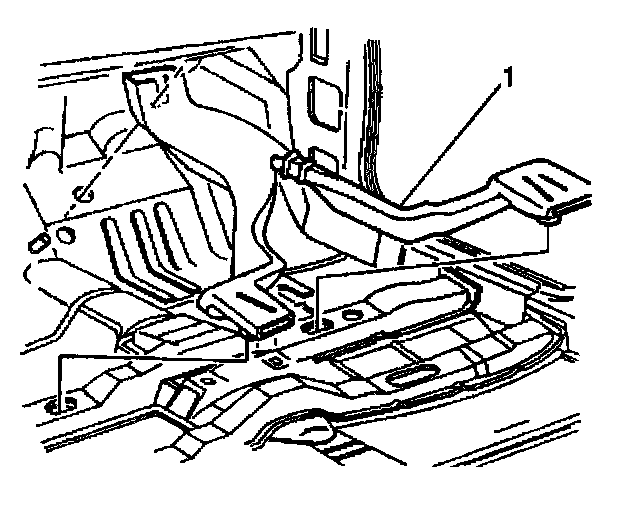

2. Unsnap the rear floor air outlet duct (1) from the studs and the holes in the floor reinforcement.
3. Disconnect the lower heater duct from the heater core outlet cover.
4. Remove the lower heater duct

INSTALLATION PROCEDURE
1. Install the lower heat duct.
2. Connect the lower heater duct to the heater core outlet cover.
3. Snap the rear floor air outlet duct (1) onto the studs and the holes in the floor reinforcement.
4. Install the front carpet into position.
