Engine Mount Strut Bracket Replacement (Upper Radiator Support)

Removal Procedure





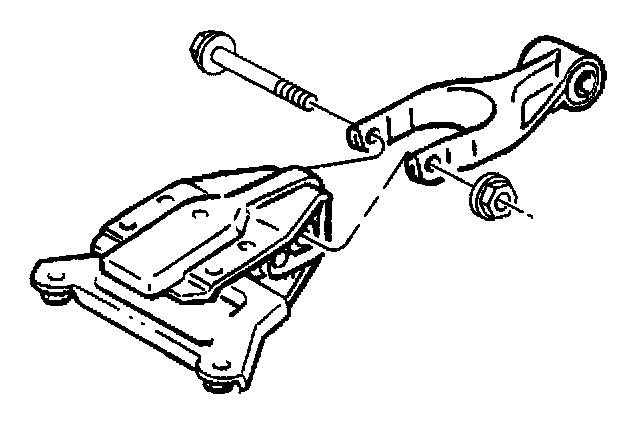

1. Remove the engine mount strut(s) from the engine mount strut bracket(s) at the upper radiator support. Refer to Engine Mount Strut Replacement (Left) and/or Engine Mount Strut Replacement (Right).

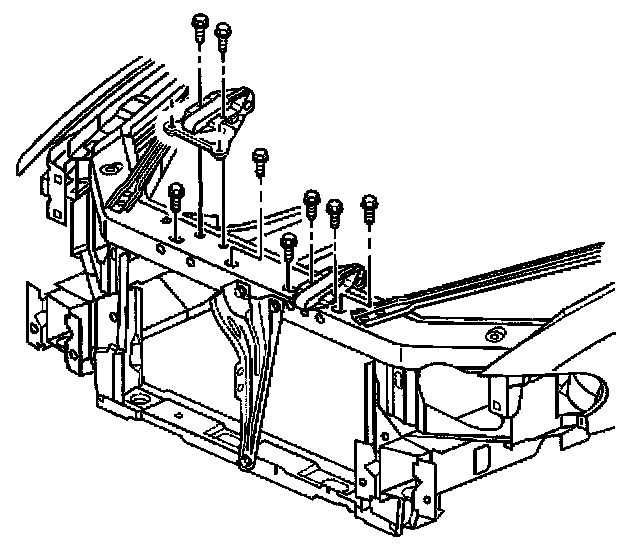

2. Remove the bolts from the engine mount strut bracket to the upper radiator support.
3. Remove the engine mount strut bracket from the upper radiator support.

Installation Procedure





1. Position the engine mount strut bracket over the upper radiator support so the engine mount strut bracket and the engine mount strut are aligned. Align the engine mount strut bracket with the proper holes of the upper radiator support.

Notice: Refer to Fastener Notice in Service Precautions.

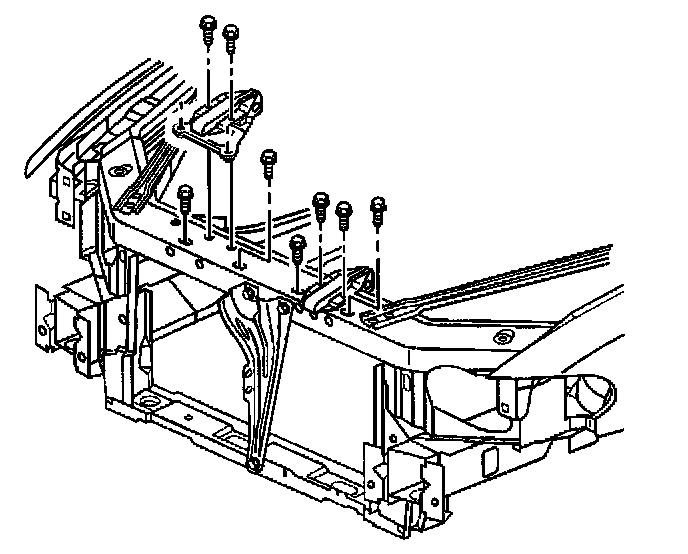

2. Install the bolts through the engine mount strut bracket to the upper radiator support.
Tighten the engine mount strut bracket bolts at the upper radiator support to 28 Nm (21 ft. lbs.).





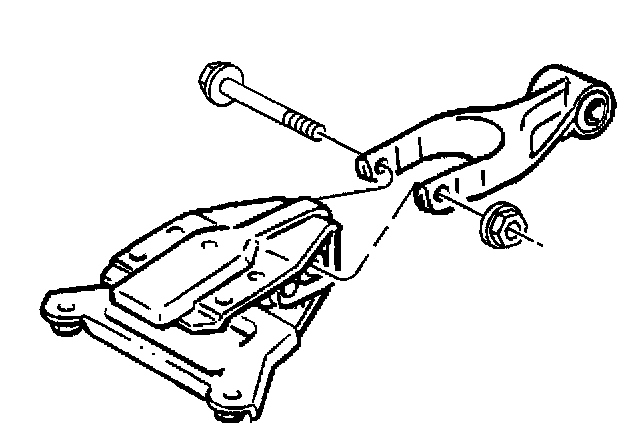

3. Install the engine mount strut(s) to the engine mount strut brackets) at the upper radiator support. Refer to Engine Mount Strut Replacement (Right) and/or Engine Mount Strut Replacement (Left).
