Home >> Buick >> 1999 >> Regal V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Locks >> System Diagram >> Power, Ground and Serial Data

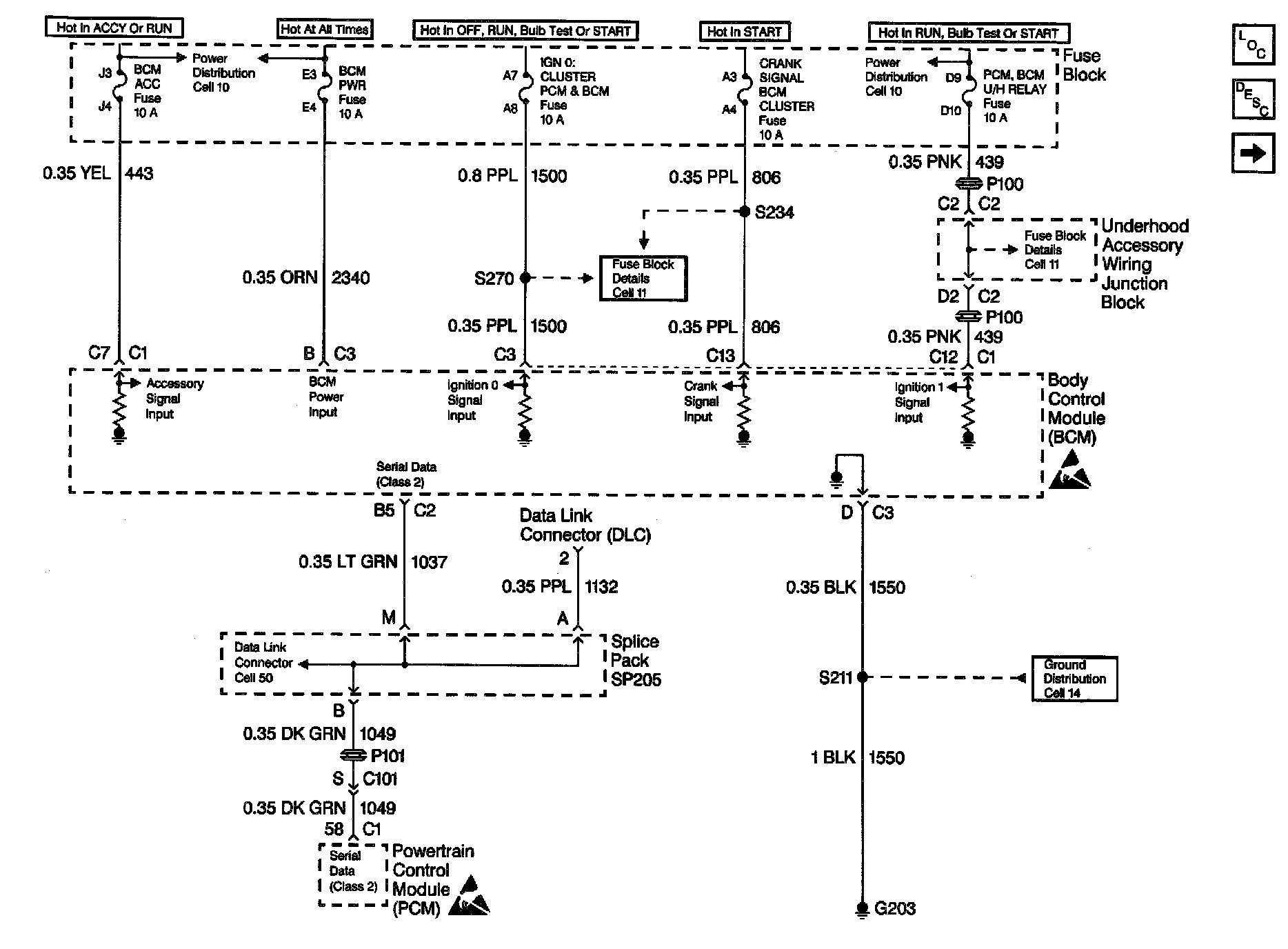

Power, Ground and Serial Data

Door Locks Schematics: Power, Ground And Serial Data:
