Regal V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Locks
>>
System Diagram
>>
Door Switches and Remote Control Door Lock Receiver
Door Switches and Remote Control Door Lock Receiver

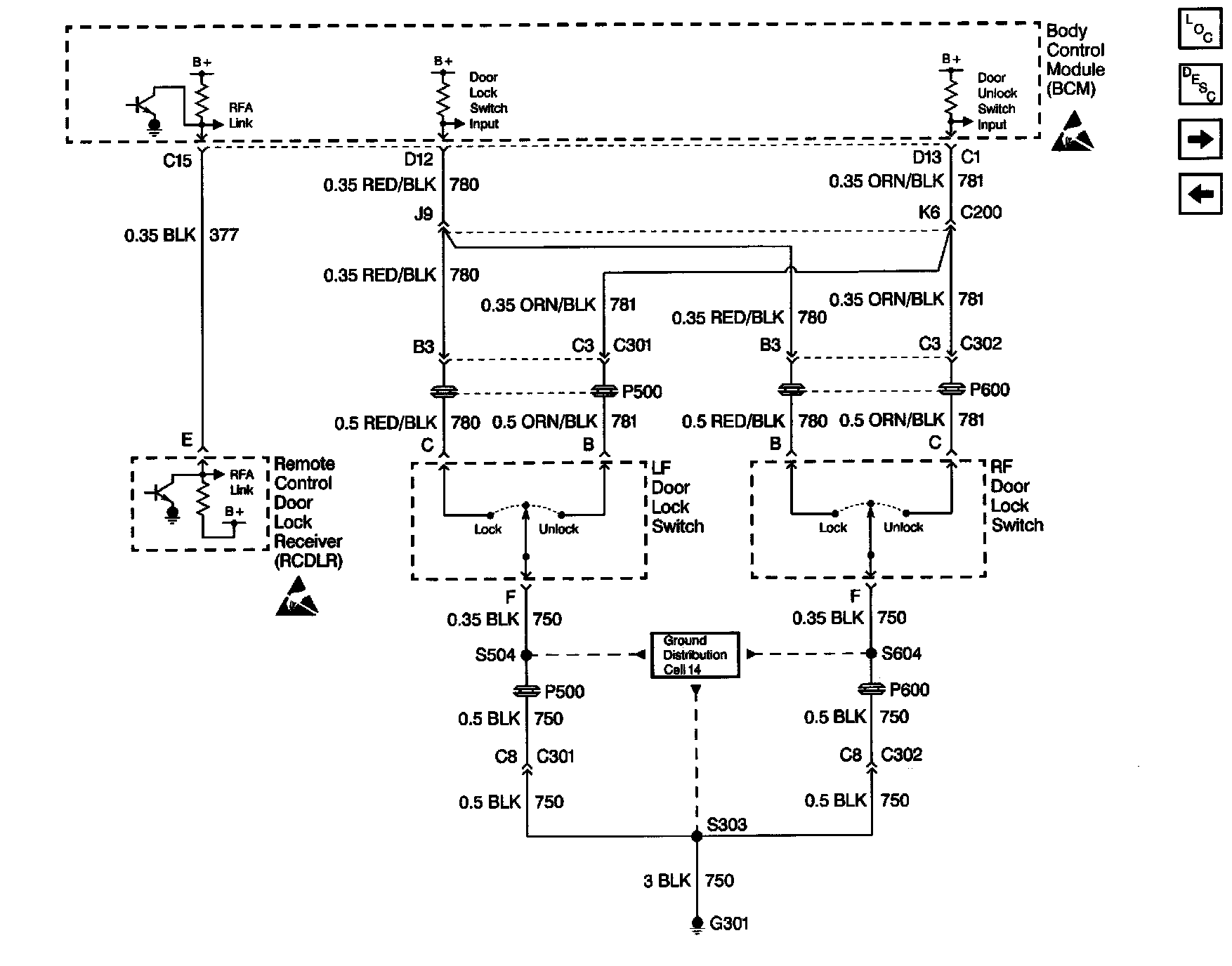

Door Locks Schematics: Door Switches And Remote Control Door Lock Receiver:
