Home
>>
Buick
>>
1999
>>
Regal V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
System Diagram
>>
Headlights
>>

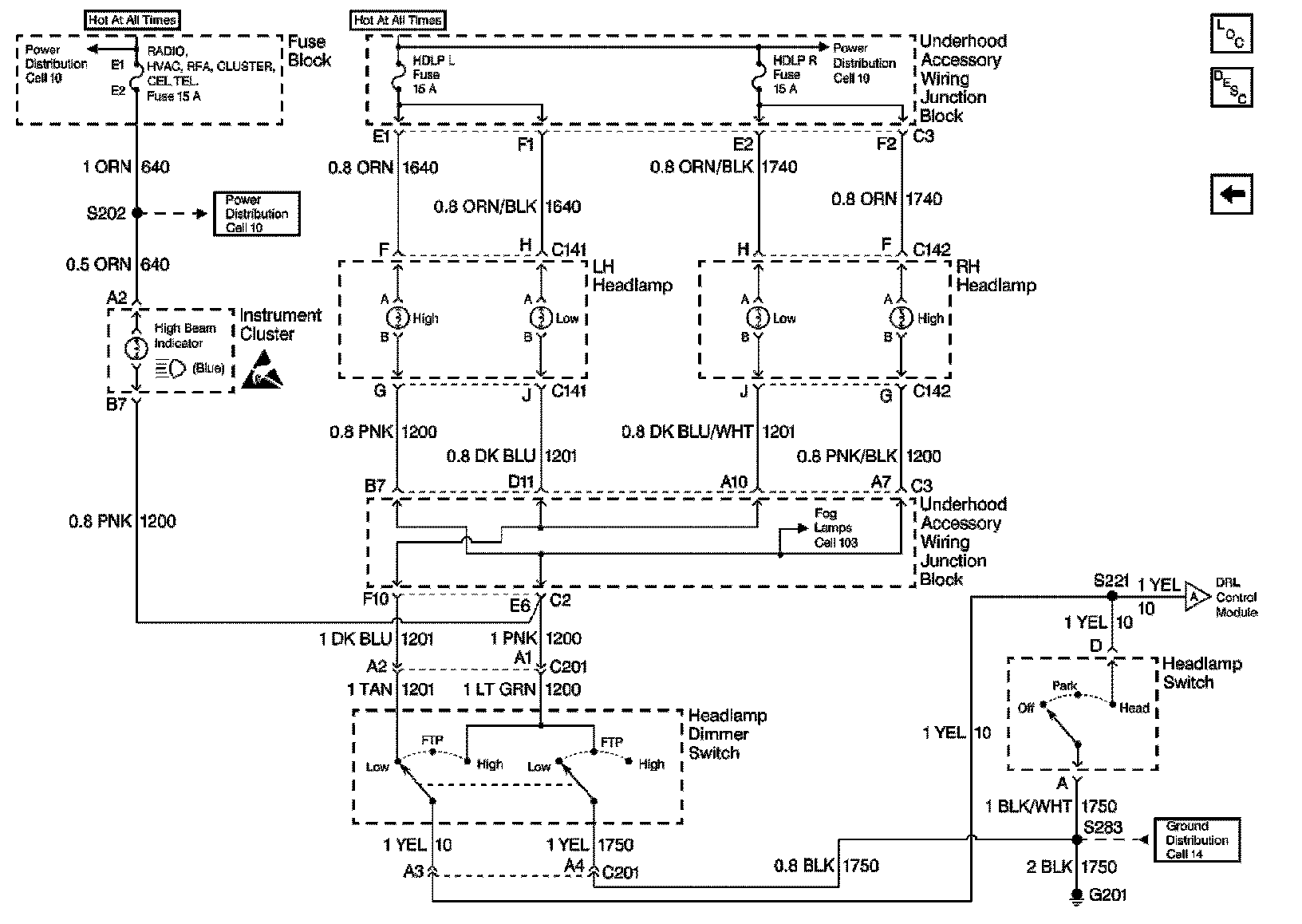

Headlight Schematics
Headlight Schematics
Headlamps, Dimmer/
Headlamp Switches
