Buick
>>
1999
>>
Regal V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
System Diagram
>>
HVAC System - Manual
>>
Actuators
Actuators

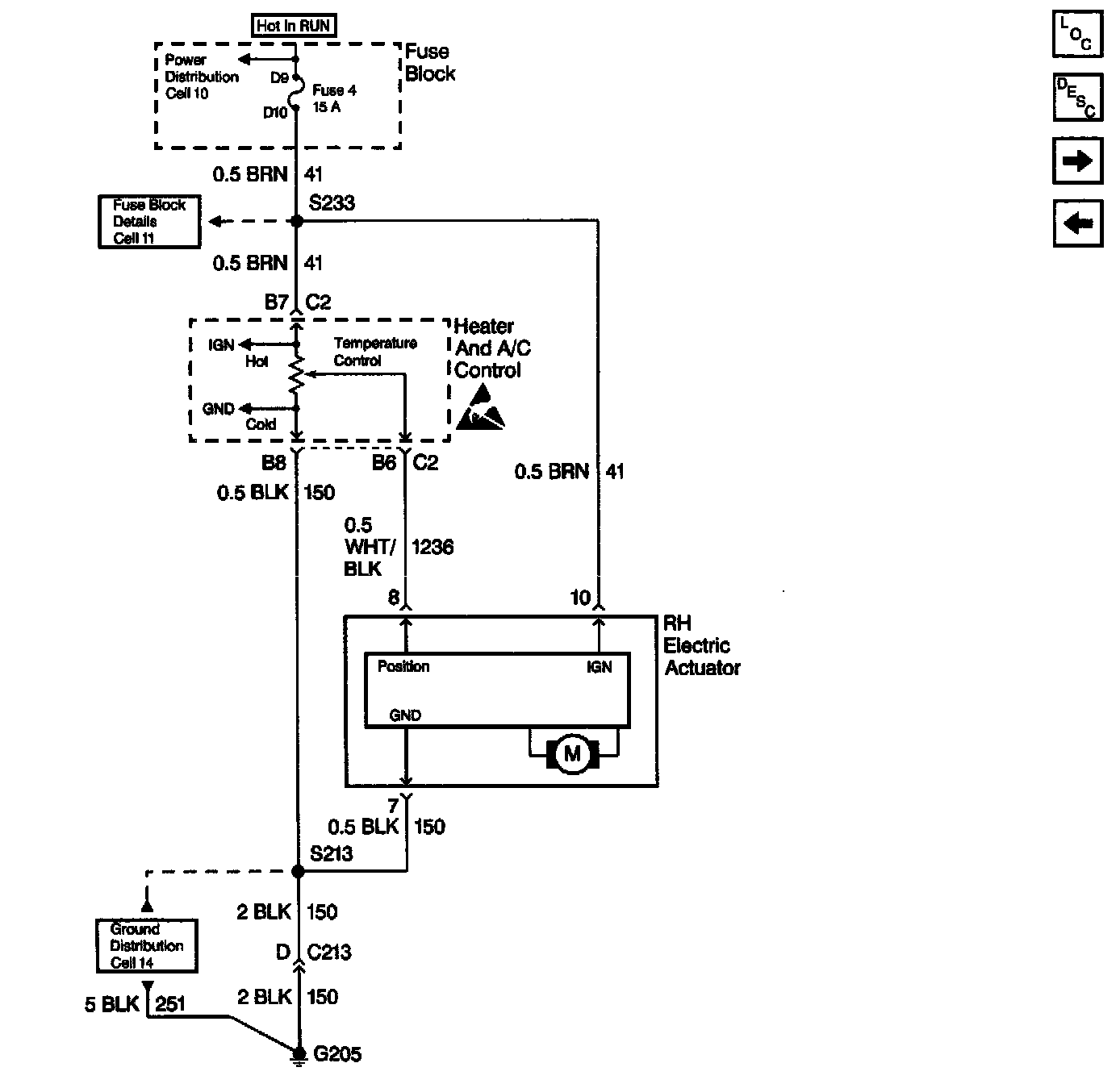

HVAC Air Delivery Schematics:
HVAC Air Delivery Schematics: Air Delivery System:
