Home >> Buick >> 1999 >> Regal V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Door Lock Actuator >> Door Lock LF, C2 (Actuator Motor)

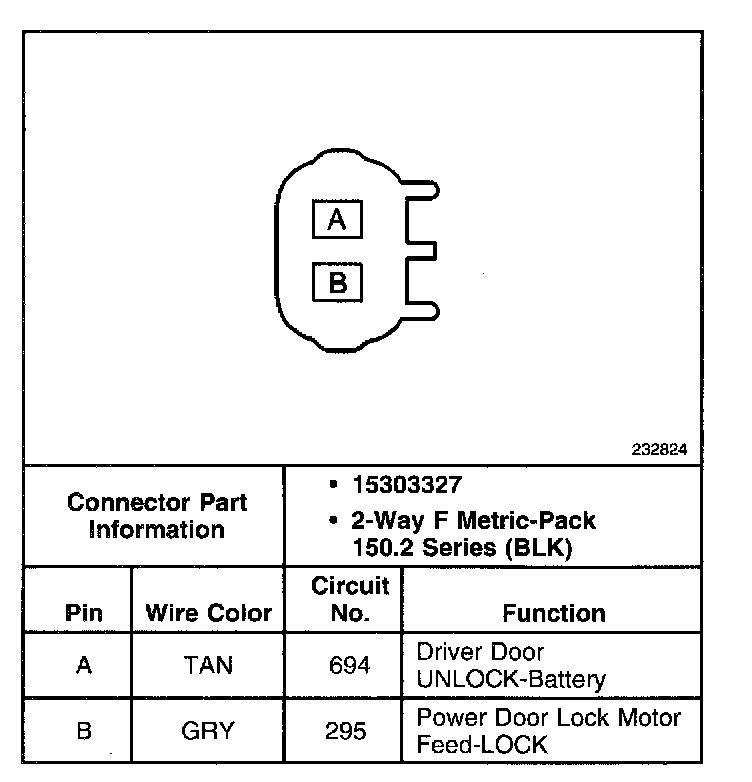

Door Lock LF, C2 (Actuator Motor)

Door Lock LF, C2 (Actuator Motor):
