Buick
>>
1999
>>
Regal V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors By Number
>>
C252 (RPO UV8)
C252 (RPO UV8)

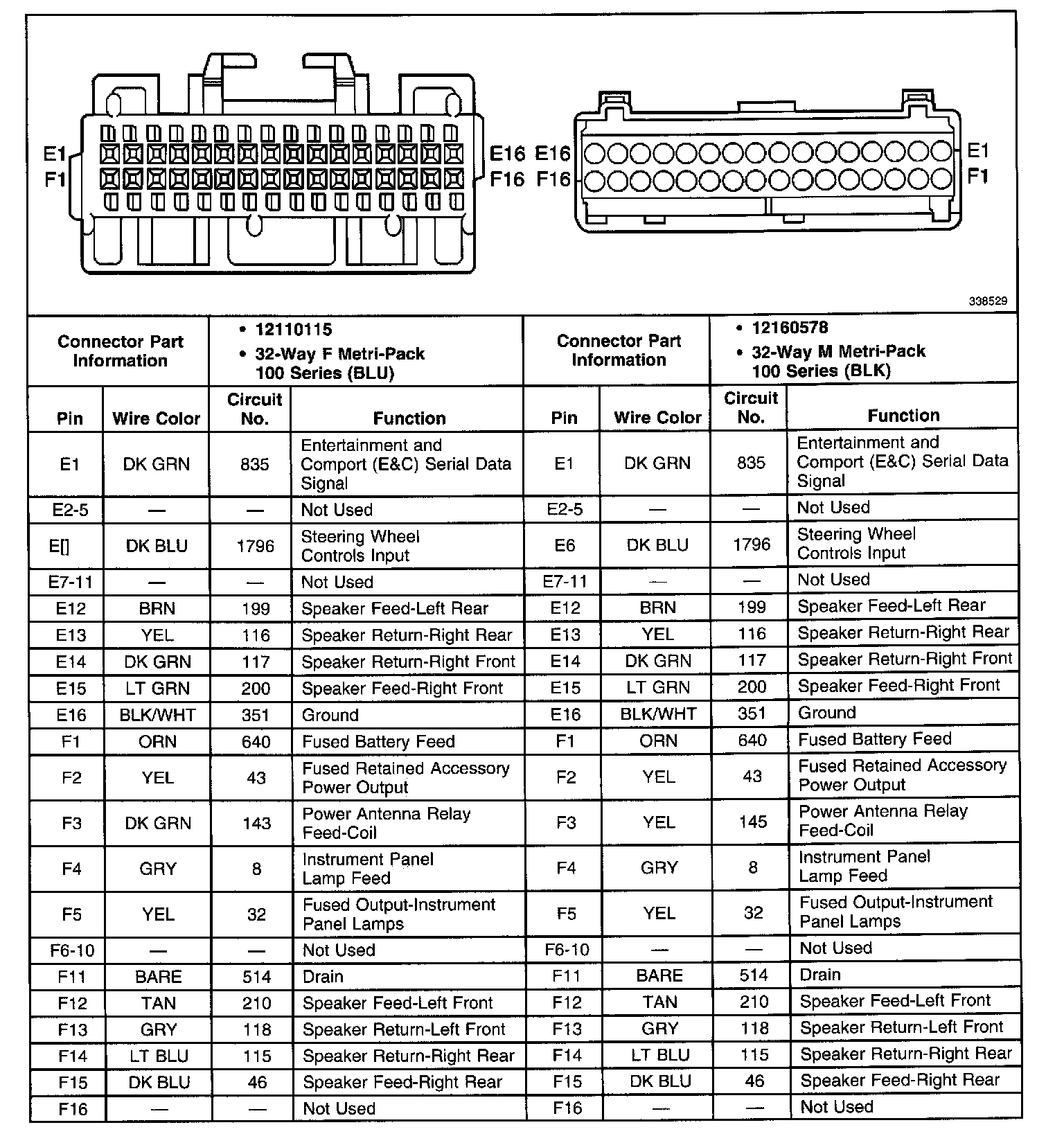

In-Line Connector C252 (RPO UV8):
