Home >> Buick >> 1999 >> Park Avenue V6-3.8L VIN K >> Repair and Diagnosis >> Wiper and Washer Systems >> Wiper Motor >> Diagrams

Wiper Motor: Diagrams

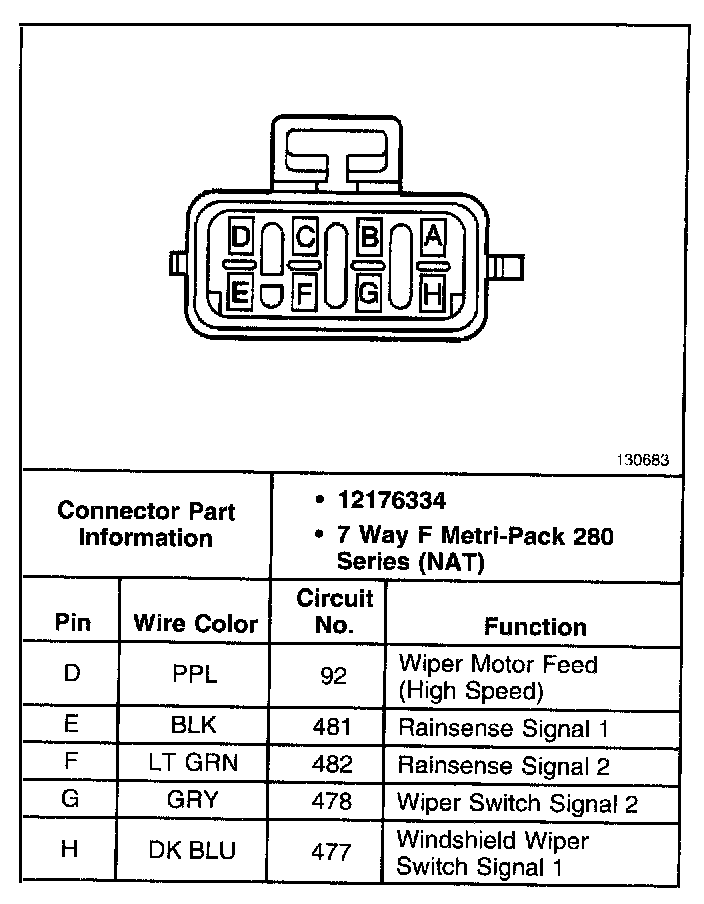

Windshield Wiper Motor (Part 2 Of 2):

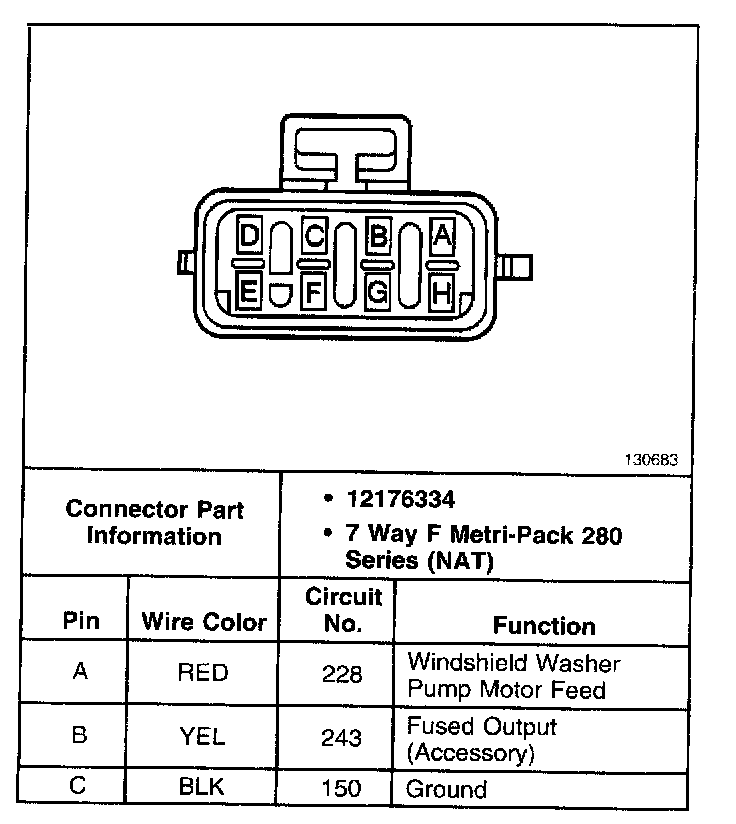

Windshield Wiper Motor (Part 1 Of 2):
