Front Door Window Regulator: Service and Repair

REMOVAL PROCEDURE

CAUTION: Refer to Door Window Express Down in Cautions and Notices.

1. Remove the door trim panel.
2. Remove the water deflector.
3. Remove the speaker assembly.
4. Remove the window.
5. Disconnect the lock rod from the outside door handle.
6. Disconnect the outside handle rod.
7. Remove the 3 fasteners from the door latch assembly.

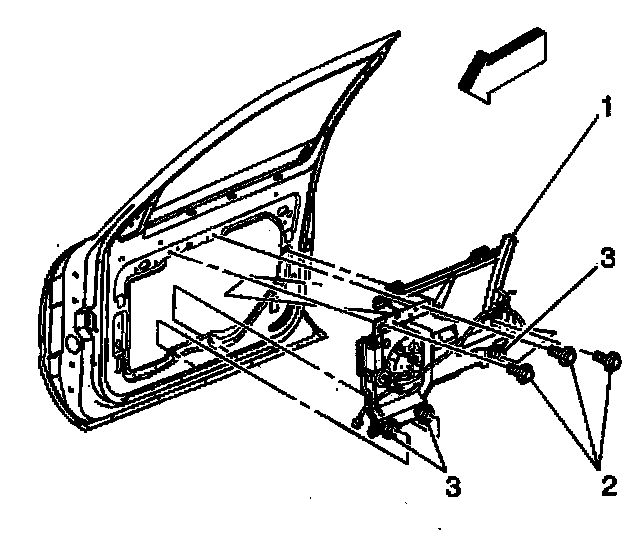

8. Remove the 3 upper bolts (2) from the module (1).
9. Loosen the 3 lower captive bolts (3).
10. Remove the module assembly (1).
11. Disconnect the inside door handle rods from the door latch.
12. Lift the door latch off the retainer.

INSTALLATION PROCEDURE
1. Install the door latch onto the retainer.
2. Install the inside door handle and lock rode to the door latch.
3. Install the outside door handle rod into the retainer for ease of installation.
4. Start the fasteners in the module.
5. Align the fasteners installed in the module with the keyhole slots in the door.

CAUTION: Refer to Door Window Express Down in Cautions and Notices.

6. Install the module assembly (1) into the door.
7. Install the 3 upper bolts (2).

NOTE: Refer to Fastener Notice in Cautions and Notices.

8. Tighten all 6 bolts (2,3).

Tighten
Tighten the attaching bolts to 10 N.m (89 lb in).

9. Install the 3 fasteners to the lock assembly.
10. Tighten the lock assembly fasteners.

Tighten
Tighten the fasteners to 10 N.m (89 lb in).

11. Install the lock rods to the outside handle.
12. Install the window.
13. Install the speaker assembly.
14. Install the trim panel bracket.

15. Install the trim panel bracket fasteners.

Tighten
Tighten the fasteners to 9 N.m (80 lb in).

16. Install the water deflector.
17. Install the door trim panel.
