Transmission Pressure Test Port: Service and Repair

Removal Procedure





1. Remove the air cleaner intake duct. Refer to Air Cleaner Intake Duct Replacement in Powertrain Management.

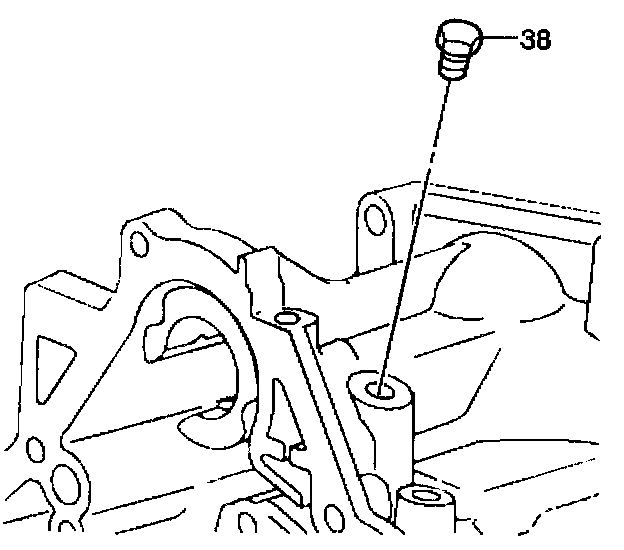

2. Remove the line the pressure pipe plug (38).

Installation Procedure

Notice: Refer to fastener Notice in Service Precautions.

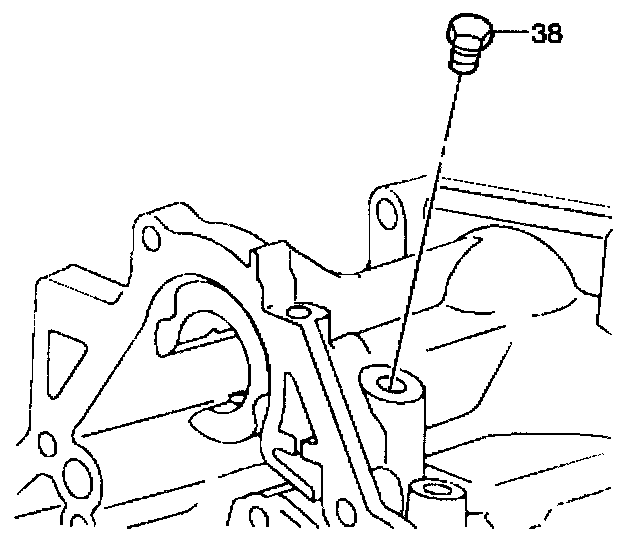

1. Install the line pressure pipe plug (38).
^ Tighten the line pressure pipe plug (38) to 11 Nm (97 inch lbs.).
2. Install the air cleaner intake duct. Refer to Air Cleaner Intake Duct Replacement in Powertrain Management.
