At Mount Replacement (Right)

Removal Procedure





1. Raise the vehicle. Support the vehicle. Refer to Vehicle Lifting.
2. Support the transmission with a jackstand.

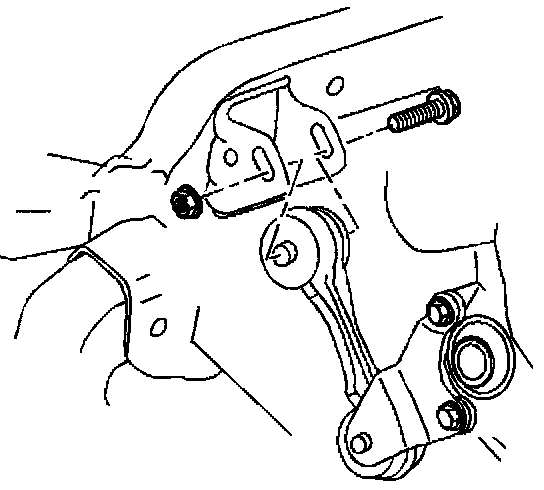

3. Remove the bolt attaching the torque strut to the torque strut bracket.

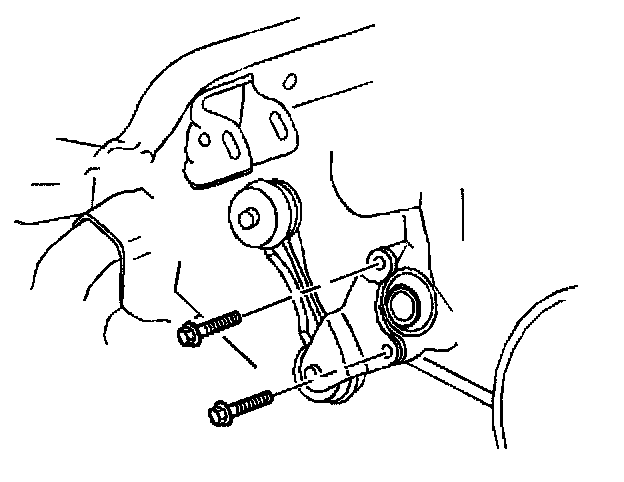

4. Remove the bolts attaching the torque strut to the transmission.

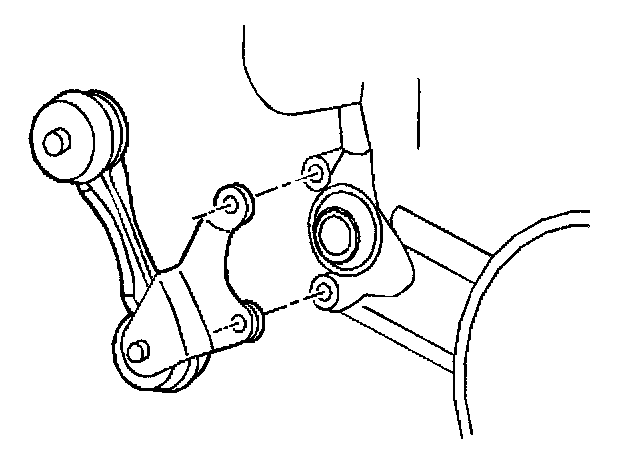

5. Remove the torque strut.

Installation Procedure

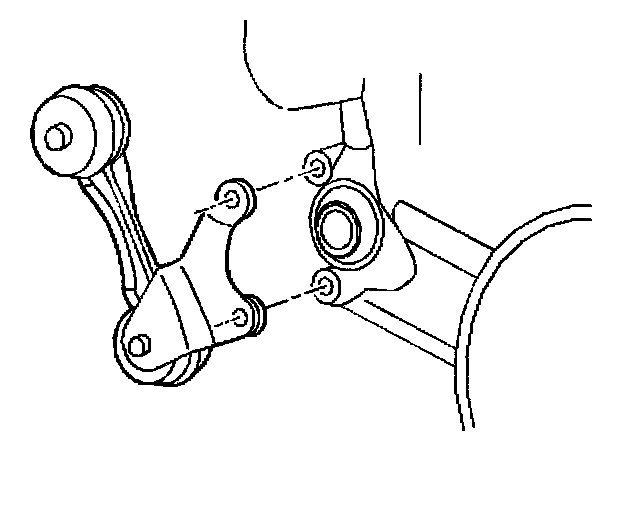

1. Install the torque strut into the bracket.





Notice: Refer to Fastener Notice in Service Precautions.

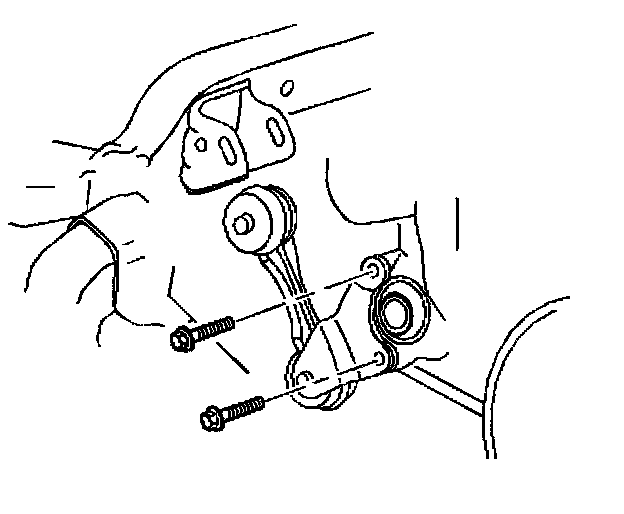

2. Install the bolts attaching the torque strut to the transmission.
^ Tighten the bolts to 55 Nm (41 ft. lbs.).

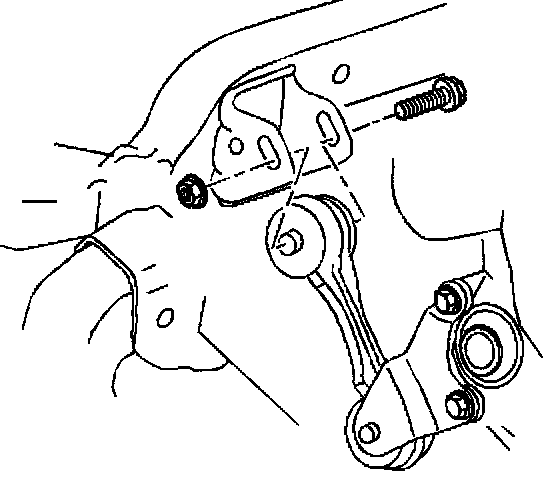

3. Install the bolt attaching the torque strut to the torque strut bracket.
4. Remove the jackstand.
5. Lower the vehicle.
