Fluid Pump: Service and Repair

Removal Procedure

^ Tools Required
- J 28467 - 360 Engine Support Fixture

Caution: Refer to Battery Disconnect Caution in Service Precautions.





1. Disconnect the negative battery cable.
2. Install the J28467-360.
3. Remove the case side cover. Refer to Case Cover, A/T.

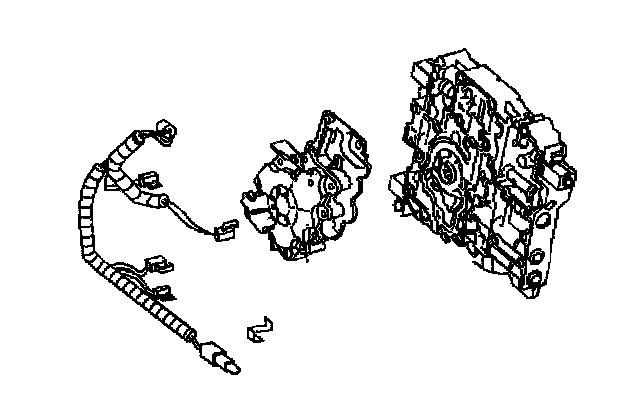

4. Remove the wiring harness as necessary.

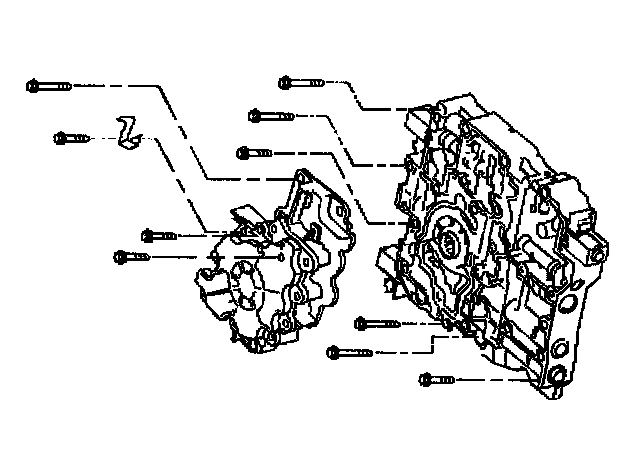

5. Remove the oil pump to valve body bolts.
6. Inspect the oil pump.

Installation Procedure

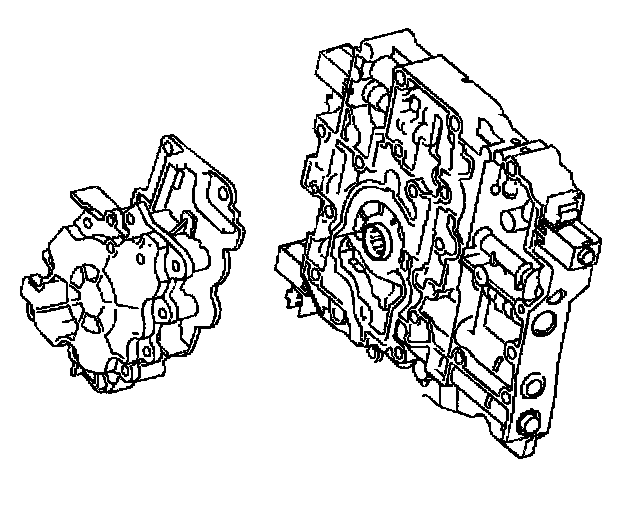

1. Install the oil pump to the valve body.





Notice: Use a torque wrench to tighten the pump to valve body bolts. Do not exceed the torque specifications.

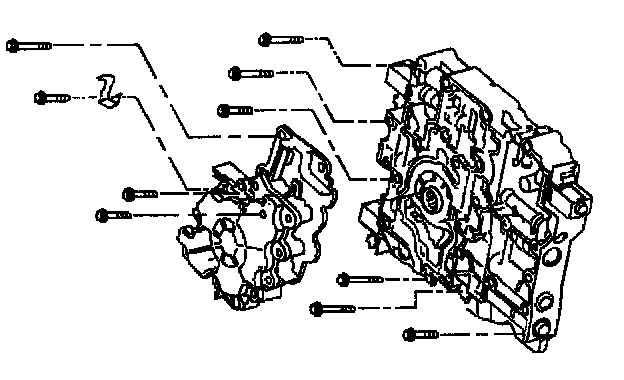

2. Install the oil pump to valve body bolts.

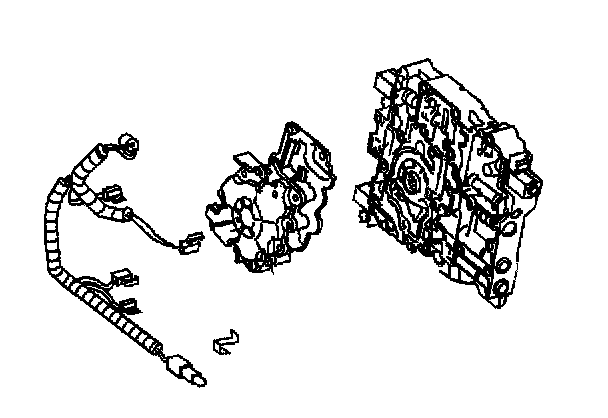

3. Install the wiring harness, if removed.
4. Install the case side cover. Refer to Case Cover, A/T.
5. Lower the vehicle.
6. Remove the J 28467-360.
7. Connect the negative battery cable.
