Breather

Removal Procedure





1. Remove the air cleaner intake duct. Refer to Air Cleaner Intake Duct Replacement in Powertrain Management.

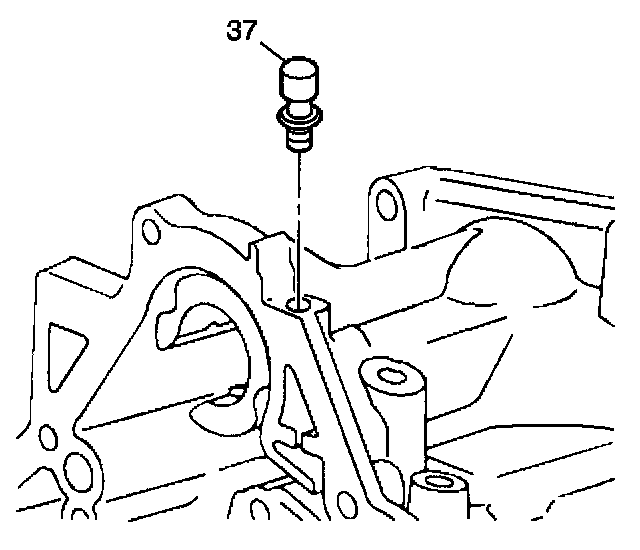

2. Remove the transaxle vent (press fit) (37).

Installation Procedure

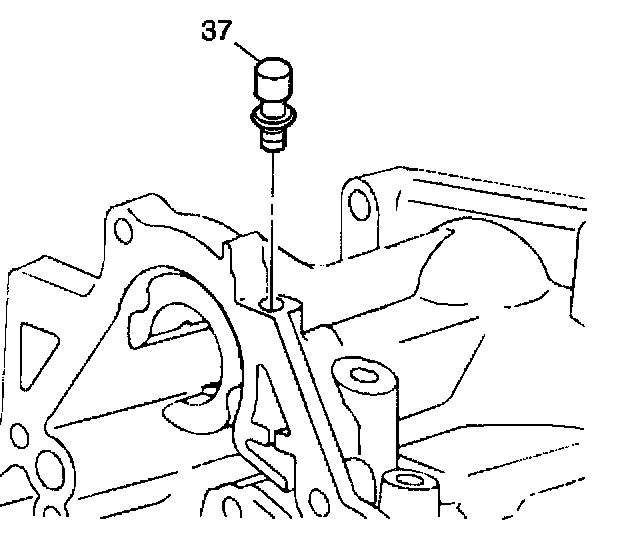

1. Install the transaxle vent (press fit) (37).
2. Install the air cleaner intake duct. Refer to Air Cleaner Intake Duct Replacement in Powertrain Management.
