Forward Servo Replacement

Removal Procedure

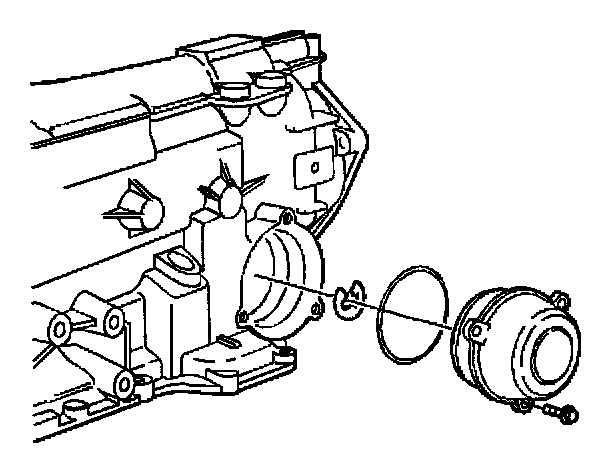

1. Remove the forward servo attaching bolts.

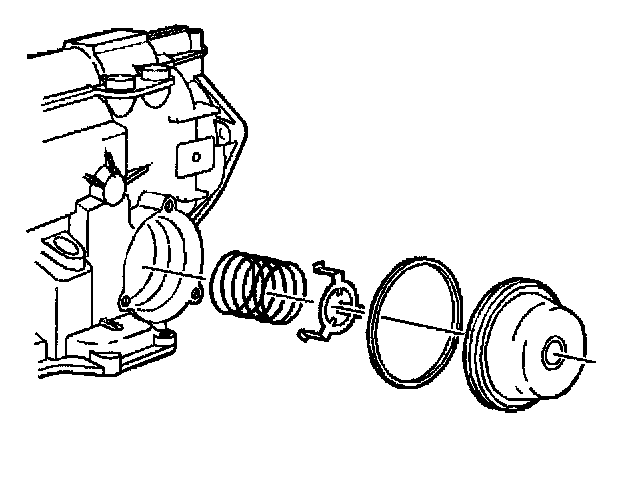

2. Remove the servo cover.

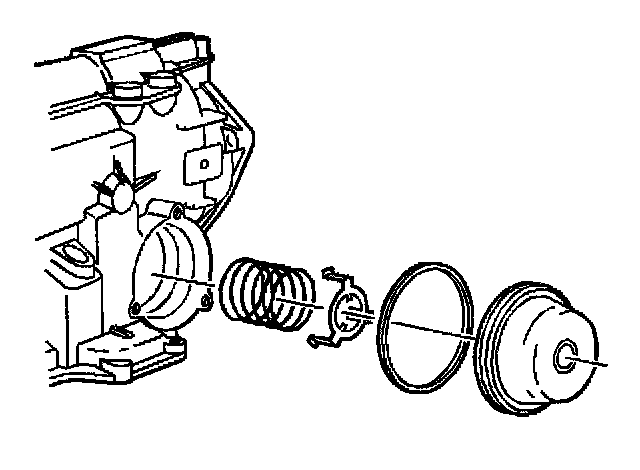

3. Remove the servo piston assembly.

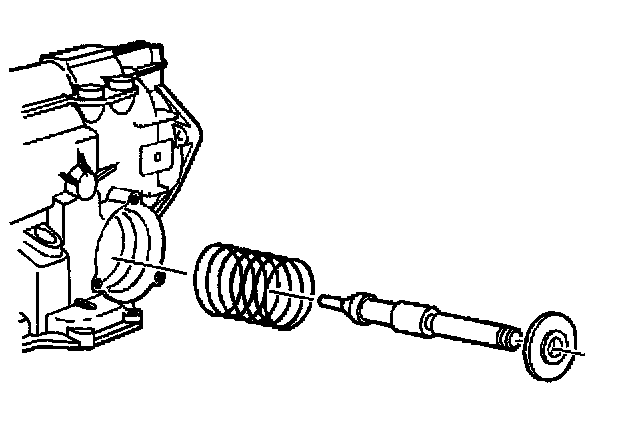

4. Remove the following items:
^ Sealing ring
^ Servo spring
5. For disassembly of the forward servo piston assembly,

Installation Procedure

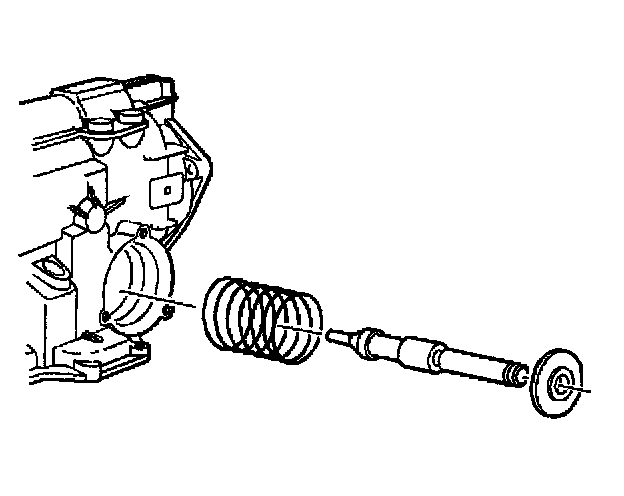

1. Install the following items:
^ Servo spring
^ Sealing ring





2. Install the servo piston assembly.

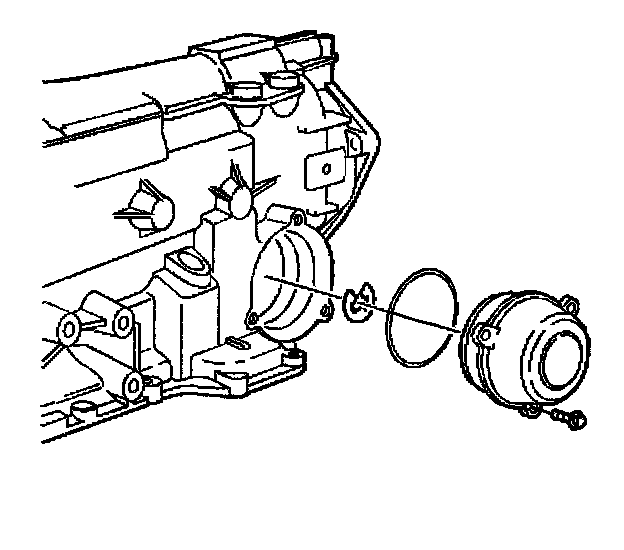

3. Install the servo cover.
4. Install the forward servo attaching bolts.
5. For disassembly of the servo piston assembly.
