Door Module
>>
Left Front Door Jamb Switch
Left Front Door Jamb Switch

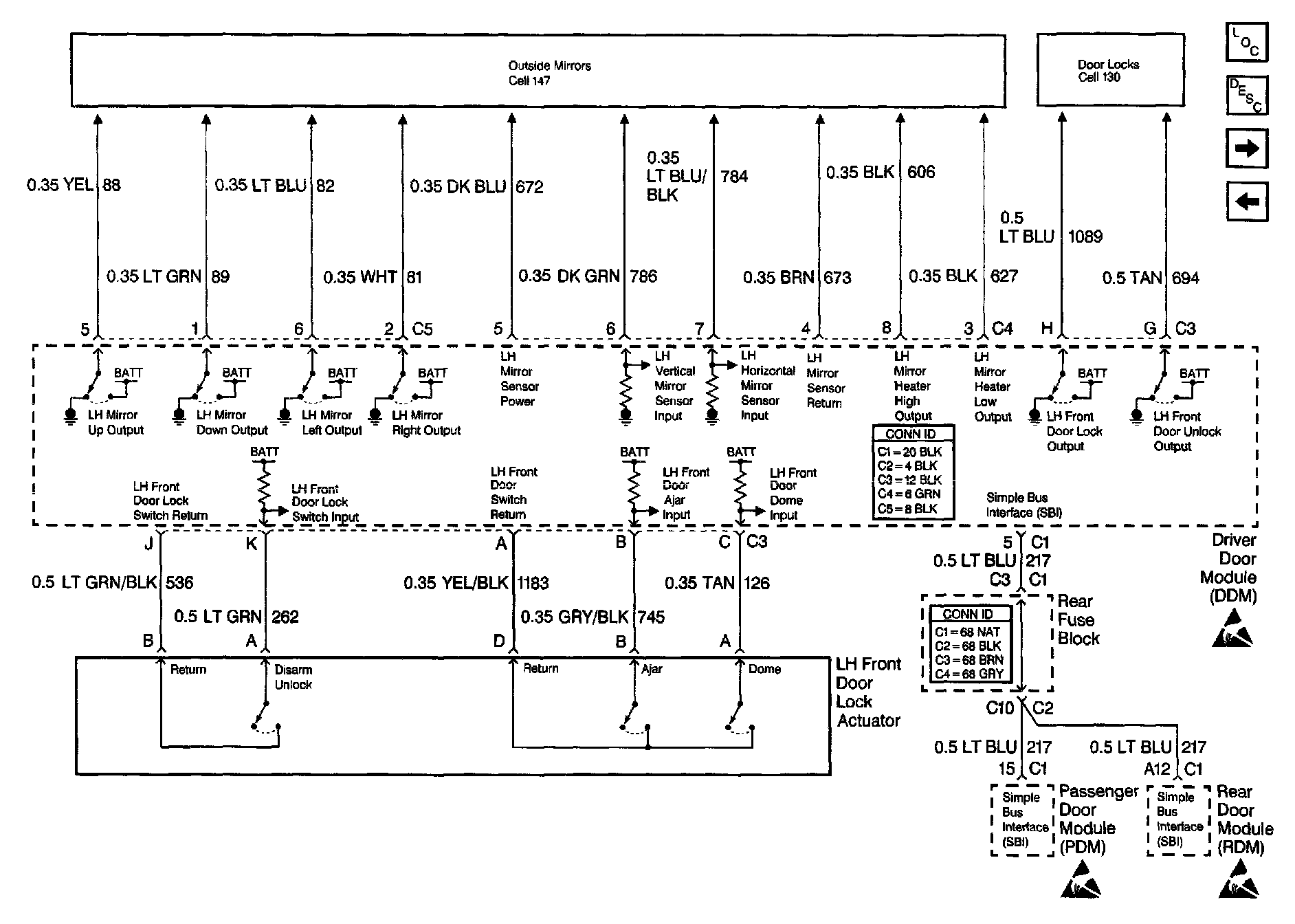

Door Control Module Schematics: Left Front Door Jamb Switch:
