2 - 3 Shift Solenoid Replacement

Removal Procedure





1. Remove the case side cover. Refer to Case Cover, A/T.
2. Disconnect the transaxle wiring harness.

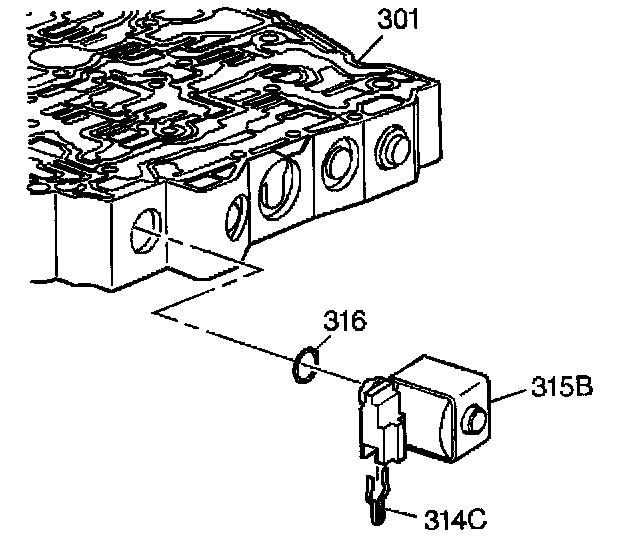

3. Remove the 2 - 3 shift solenoid (31 5B).

Installation Procedure

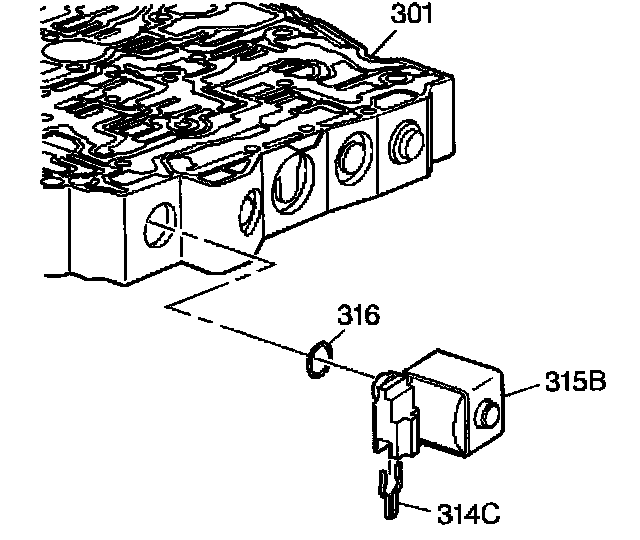

1. Install the 2 - 3 shift solenoid (31 5B).
2. Connect the transaxle wiring harness.
3. Install the case side cover. Refer to Case Cover, A/T.
