1 - 2 Shift Solenoid Replacement

Removal Procedure





1. Remove the case side cover. Refer to Case Cover, A/T.
2. Disconnect the transaxle wiring harness.

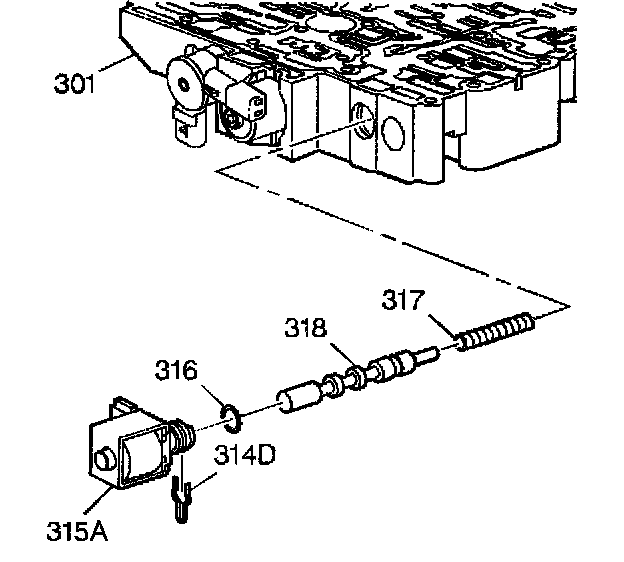

3. Remove the 1 - 2 shift solenoid (31 5A).

Installation Procedure

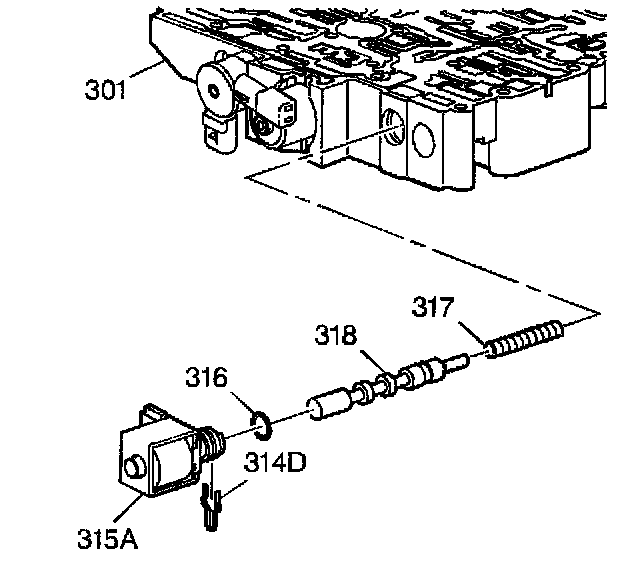

1. Install the 1 - 2 shift solenoid (315A).
2. Connect the transaxle wiring harness.
3. Install the case side cover. Refer to Case Cover, A/T.
