Air Register: Service and Repair

REMOVAL PROCEDURE

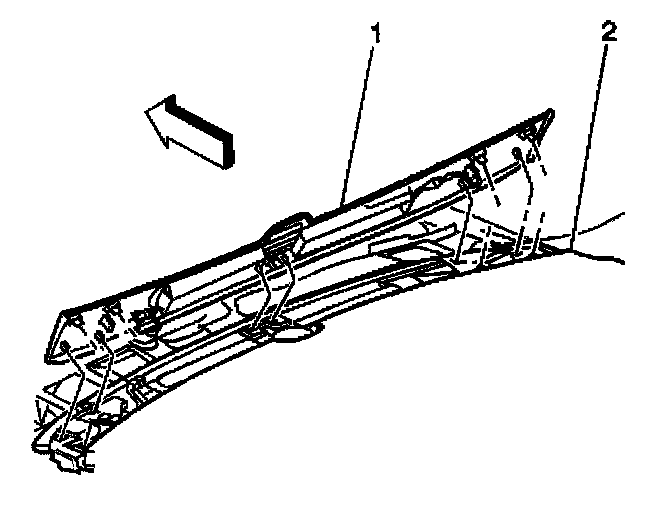

1. Pry up on the defroster grille (1) in order to disengage the retainers.
2. Disengage the following components by turning each sensor:
^ The sunload sensor
^ The twilight sentinel sensor

INSTALLATION PROCEDURE
1. Connect the following components by turning each sensor in order to lock the retainers:
^ The sunload sensor
^ The twilight sentinel sensor
2. Align the defroster grille (1) to the holes in the IP.
3. Push down on the defroster grill (1) in order to engage the retainers.
