Air Distribution Ducts Replacement - Auxiliary

REMOVAL PROCEDURE
1. Move both front seats to the full rearward position.
2. Remove the console assembly.
3. Pull back the front carpet. Refer to Carpet Replacement - Intermediate in Interior Trim.

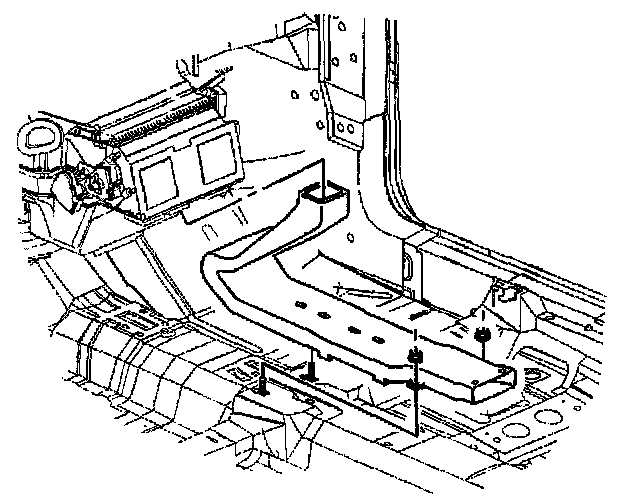

4. Remove the two fasteners from the auxiliary distribution duct.
5. Remove the distribution duct.

INSTALLATION PROCEDURE
1. Install the auxiliary distribution duct, positioning the front of the duct into the module first.

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the fasteners.

Tighten
Tighten the fasteners to 9 N.m (65 lb in).

3. Install the carpet.
4. Install the console.
