Accumulator Tube Replacement

REMOVAL PROCEDURE




TOOLS REQUIRED
J 39500 Air Conditioning Refrigerant Recovery, Recycling and Recharging (ACR4) System

1. Recover the refrigerant from the A/C system. Refer to Refrigerant Recovery and Recharging.

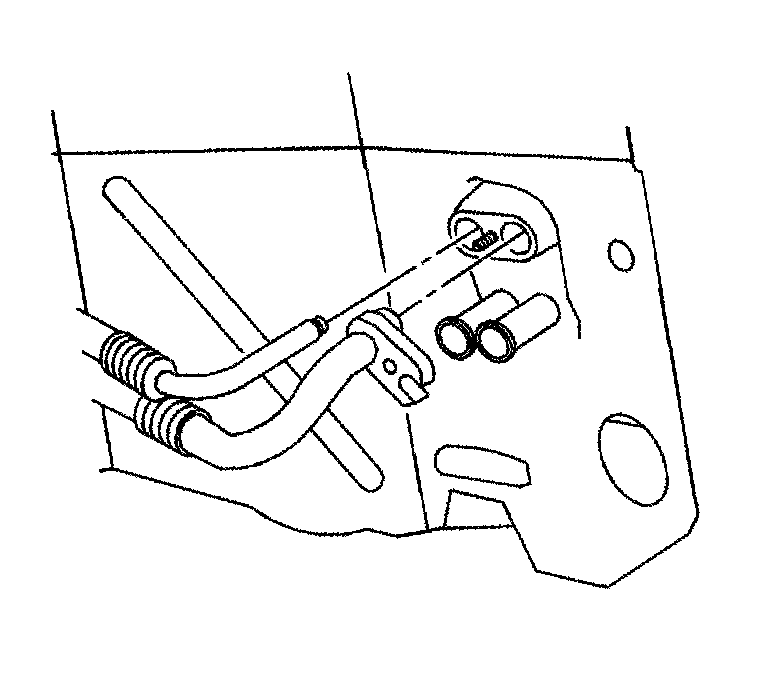

2. Remove the evaporator line fastener.




3. Remove the A/C accumulator tubes from the evaporator.




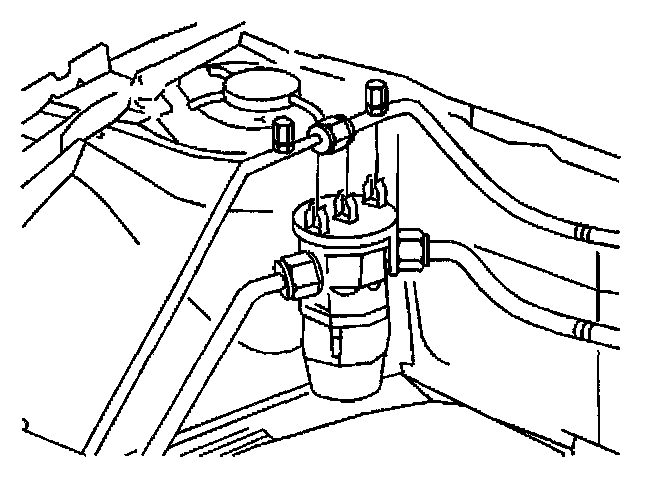

4. Remove the A/C accumulator tube from the accumulator.
5. Remove the accumulator tube from the vehicle.

INSTALLATION PROCEDURE




TOOLS REQUIRED
J 39400-A Electronic Halogen Leak Detector

1. Install the A/C accumulator tube to the vehicle.

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the A/C accumulator tube to the accumulator.

Tighten
Tighten the connection to 24 N.m (18 lb ft).

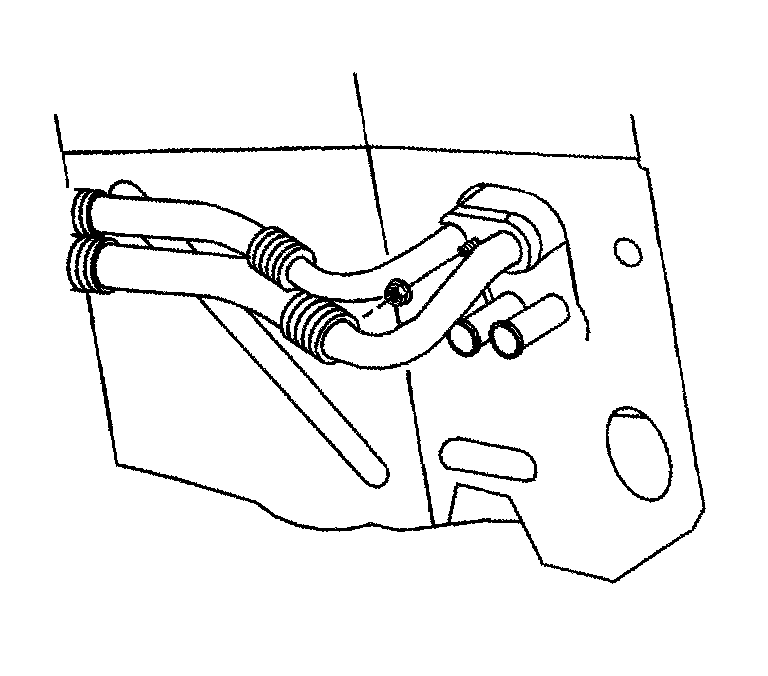

3. Install the A/C accumulator tube to the evaporator.




4. Install the evaporator line fastener.

Tighten
Tighten the A/C accumulator tube connection to 24 N.m (18 lb ft).

5. Recharge the A/C system. Refer to Refrigerant Recovery and Recharging.
6. Test the A/C system for leaks using the J 39400-A. Refer to Leak Testing.
