Engine Compartment Fan: Service and Repair

Removal Procedure

Caution: An electric fan under the hood can start up even when the engine is not running and can injure you. Keep hands, clothing and tools away from any underhood electric fan. To help avoid personal injury or damage to the vehicle, a bent, cracked, or damaged fan blade or housing should always be replaced.

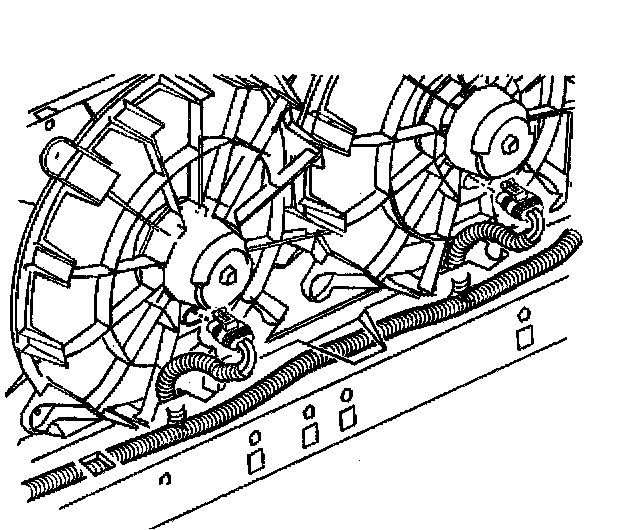

1. Disconnect the wiring harness electrical connector from the motor and the fan bracket.
2. Remove the fan assembly from the radiator support.

Installation Procedure





1. Install the fan assembly to the radiator support.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the electric cooling fan mounting bolts.
- Tighten the electric cooling fan mounting bolts to 10 Nm (89 inch lbs.).

3. Connect the wiring harness electrical connector to the fan motor and bracket.
4. Connect the negative battery cable.
