Home
>>
Buick
>>
1999
>>
Park Avenue Ultra V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Driver/Vehicle Information Display
>>
Driver Information Center (DIC) Switch (With UB7)
Driver Information Center (DIC) Switch (With UB7)

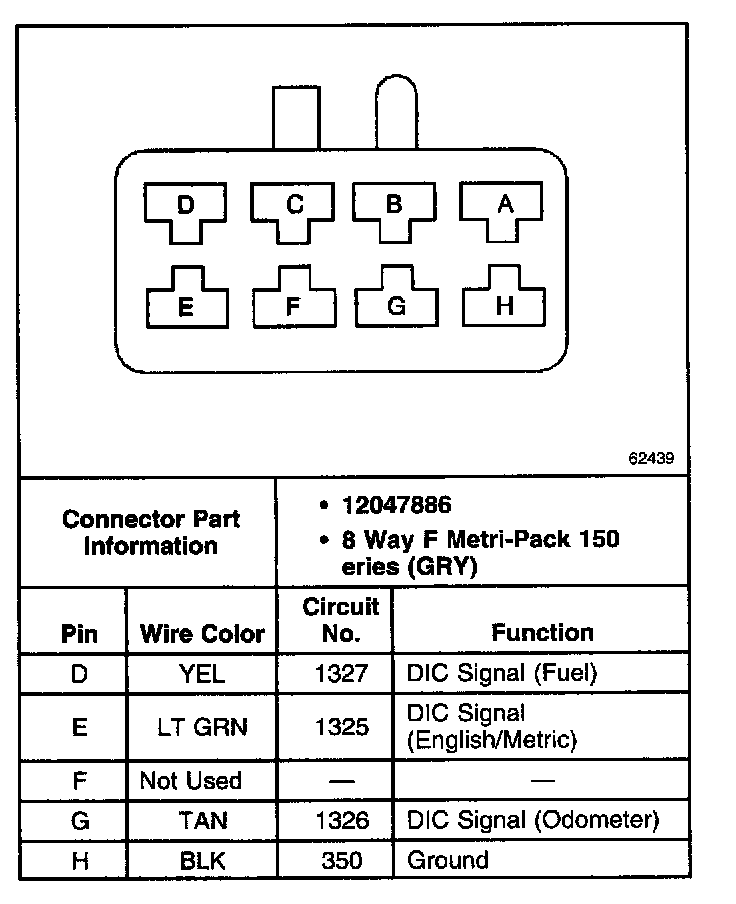

Driver Information Center (DIC) Switch (With UB7) (Part 1 Of 2):

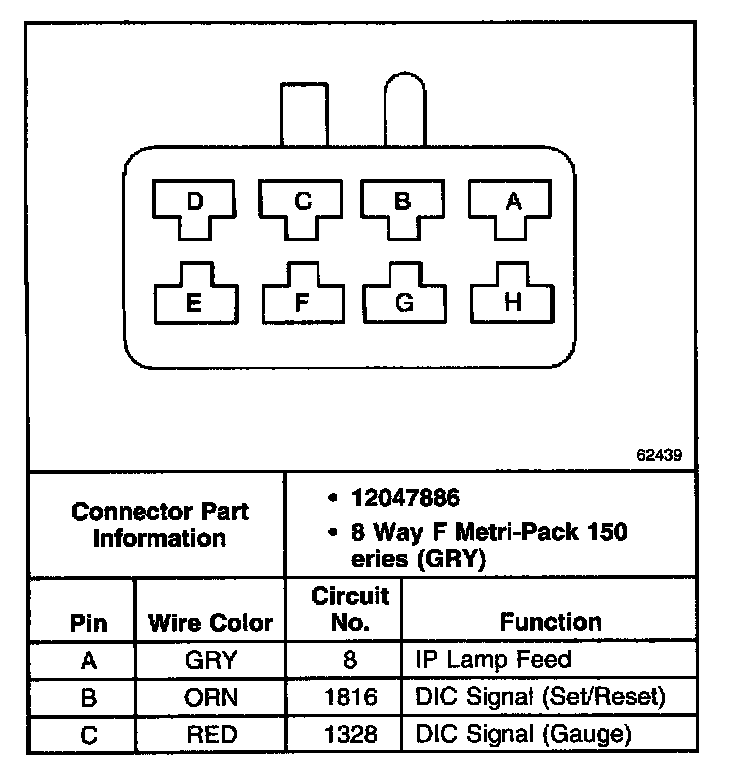

Driver Information Center (DIC) Switch (With UB7) (Part 2 Of 2):
