Weatherstrip Replacement - Front Door Opening

REMOVAL PROCEDURE




1. Remove the right or left IP end cap.

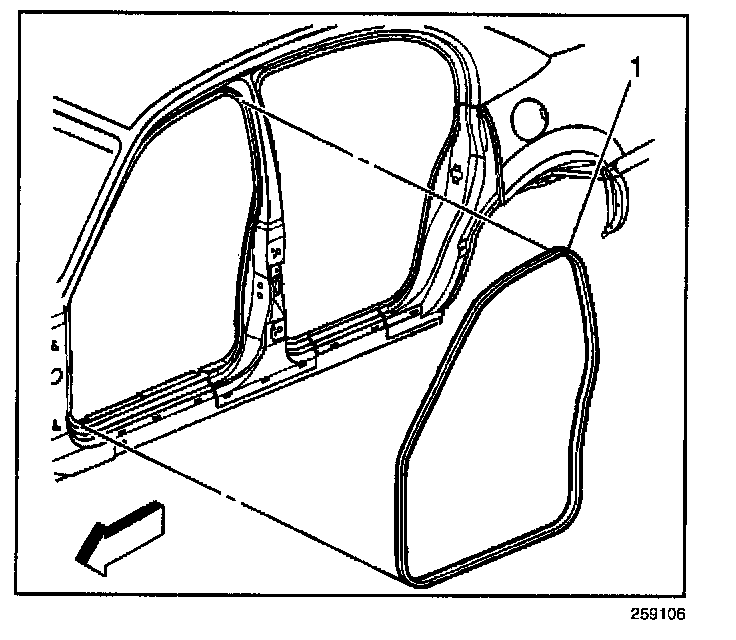

2. Remove the center trim panel.
3. Remove the front sill plate.
4. Remove the weather-strip (1).

INSTALLATION PROCEDURE




1. Line up the locating mark. Start at the upper corner of the B-pillar.

IMPORTANT:
^ The single red line on the weather-strip is for the right side of the vehicle.
^ The double red line on the weather-strip is for the left side of the vehicle.

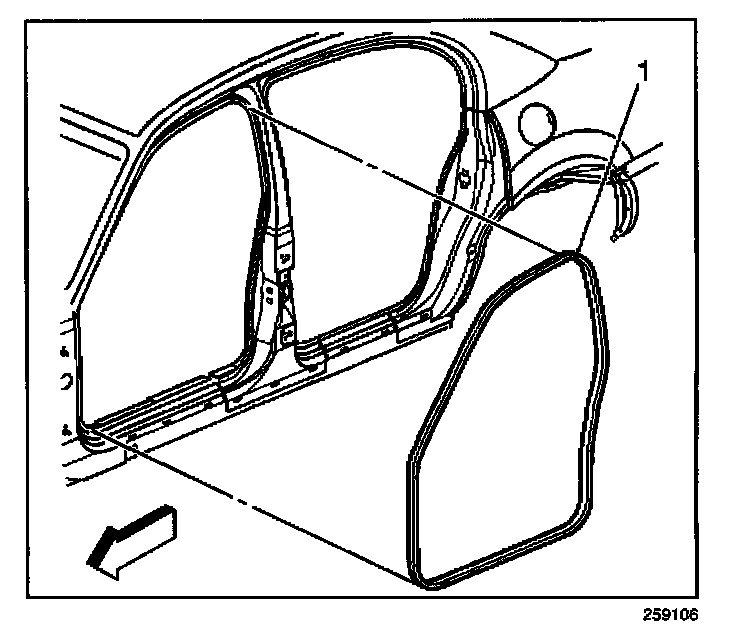

2. Push the weather-strip (1) onto the pinchweld. Work downward from the corner and continue around the entire opening.
3. Ensure that the weather-strip (1) is seated around the entire opening.
4. Install the front sill plate.
5. Install the center trim panel.
6. Install the right or left IP end cap.
