Sealing Strip Replacement - Front Door Auxiliary

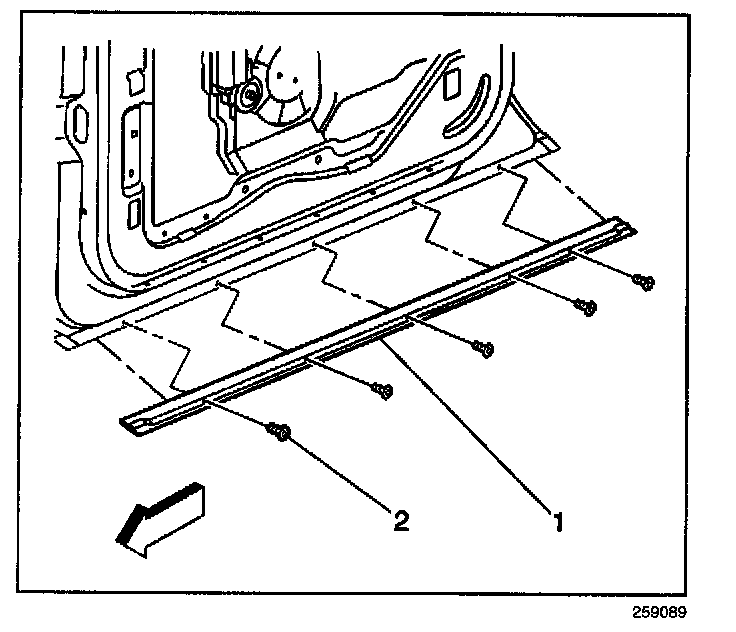

REMOVAL PROCEDURE




1. Open the door to access the fasteners.
2. Remove the fasteners (2).
3. Remove the sealing strip (1).

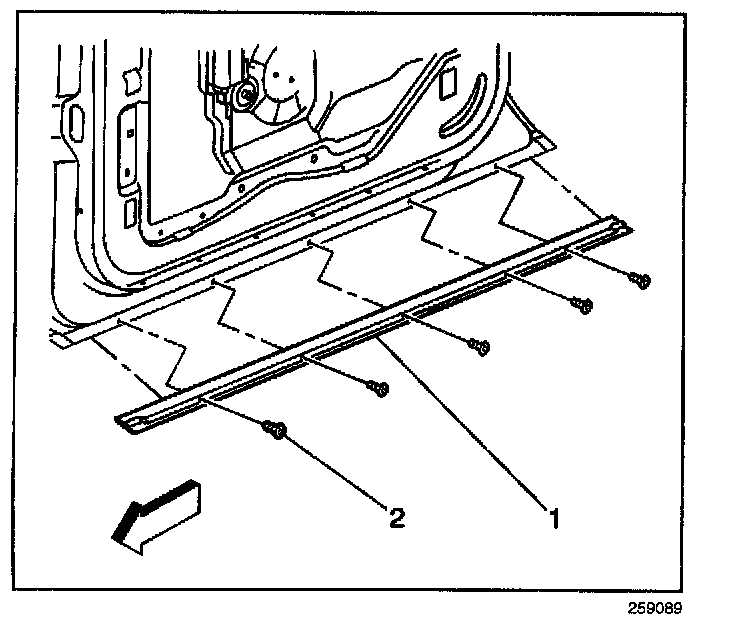

INSTALLATION PROCEDURE




1. Position the sealing strip (1) on the bottom of the door.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the fasteners (2).

Tighten
Tighten the fasteners to 0.8 N.m (7 lb in).

3. Close the door.
