Mirror Replacement - Power Mirror

REMOVAL PROCEDURE
1. Remove the trim panel.
2. Remove the inner door garnish molding.
3. Disconnect the electrical connectors.
4. Remove the foam.

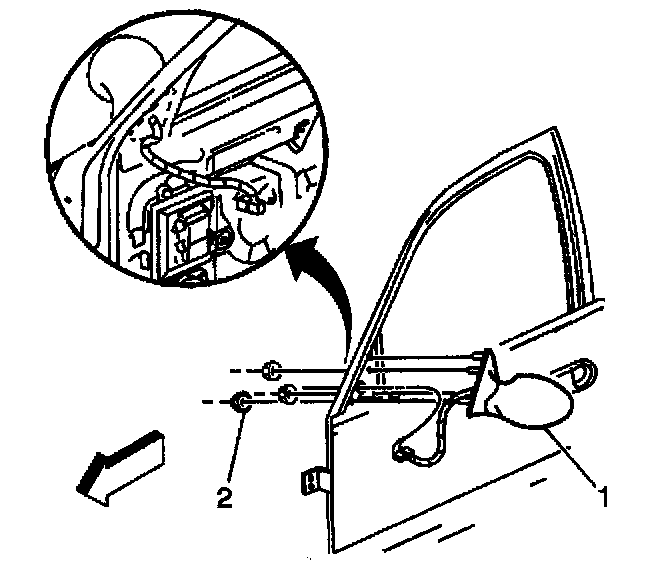

5. Remove the 3 nuts (2).
6. Remove the mirror (1).




INSTALLATION PROCEDURE
1. Install the mirror (1).

NOTE: Refer to Fastener Notice in Cautions and Notices.

IMPORTANT: Do not exceed 6 N.m (53 lb in) or the studs may pull from the mirror assembly.

2. Install the 3 nuts (2).

Tighten
Tighten the nuts to 5 N.m (44 lb in).

3. Install the foam.
4. Connect the electrical connectors.
5. Install the inner door garnish molding.
6. Install the trim panel.
