Front Console Storage Bin Replacement

REMOVAL PROCEDURE



1. Remove the center console door.
2. Remove the rear console door.
3. Remove the rear console trim panel.

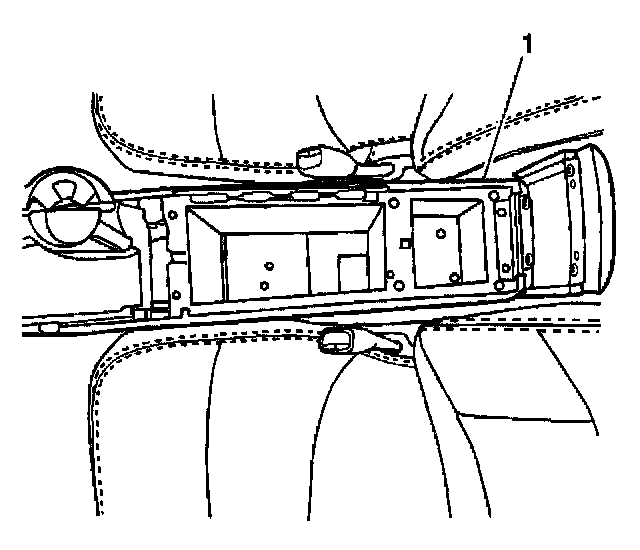

4. Remove the fasteners retaining the rear duct assembly (1).




Remove the rear duct (1).

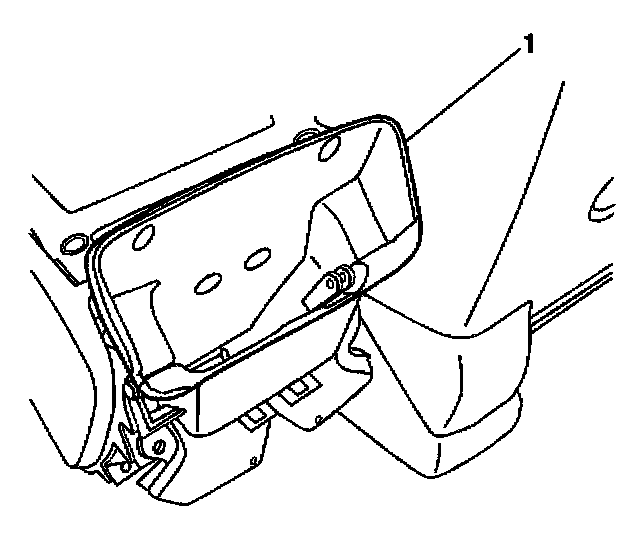

5. Remove the fasteners that fasten the storage (1) bin to the console.
6. Disconnect the electrical connector from the storage bin (1).
7. Remove the storage bin (1) from the console.

INSTALLATION PROCEDURE



1. Install the storage bin (1) into the console.
2. Connect the electrical connector.
3. Install the fasteners to the storage bin (1).




4. Install the rear duct (1) to the console. Install the fasteners that retain the rear duct (1).
5. Install the rear console trim panel.
6. Install the rear console door.
7. Install the console center door.
